Introducing

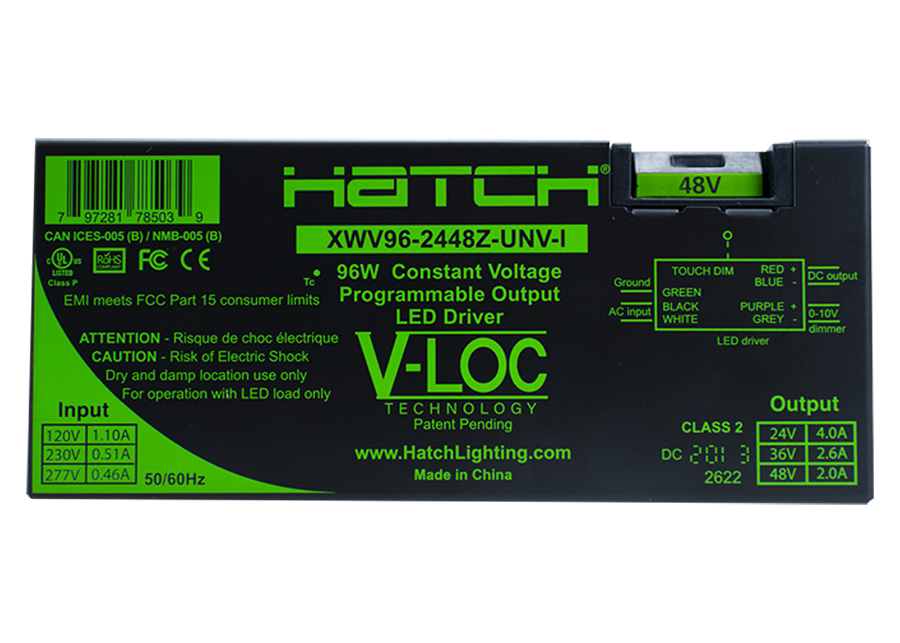

Key Programmable Constant Voltage LED Drivers

Smooth, flicker-free dimming down to 1%
0-10V and TOUCH Dimming on all models
Key Programmable Voltage Output from 12V to 48V
Architectural Grade Reliability

Learn How V-LOC Works

Developing V-LOC

At Hatch Lighting, we have a long tradition of developing unique and innovative power supply solutions for the lighting industry. In developing V-LOC, we recognized a market need for a programmable constant voltage LED driver that would provide smooth, flicker-free dimming and excellent color quality reproduction with a wide variety of commercially available constant voltage LED loads. V-LOC was designed from the ground up to become the industry benchmark for delivering precise dimming control, excellent color reproduction and unrivaled versatility.

COLOR

Our unique proprietary dimming technology ensures high quality color reproduction throughout the entire dimming range.

CONTROL

0-10V and TOUCH Dimming are standard on all V-LOC models, providing consistent, flicker free dimming down to 1% and dim-to-off capability.

VERSATILITY

V-LOC key technology enables output voltage programming from 12V to 48V with one driver.

SPECIFICATION HIGHLIGHTS

Smooth, flicker-free dimming down to 1%
0-10V and TOUCH Dimming on all models†
Consistent color quality reproduction throughout the full dimming range
Dim-To-Off Capability
Universal Input: 90VAC-305 VAC
Key Programmable Output via V-LOC Keys: 12V*, 24V, 36V & 48V
40W, 60W & 96W Models*
No minimum load required
UL Class 2 outputs
UL8750 Supplement SF Compliant: Isolated 0-10V
UL/cUL Class P Listed
Field installable
Two Case Styles: Flying leads or built-in field wiring compartments with knockouts

* 96W does not support 12 VDC
† For more information on TOUCH Dimming, please see the TOUCH Dimmer specification.

V-LOC BROCHURE

Learn more about V-LOC or share the details with your team.

Download Now

XWV CASE STYLE SPEC SHEET

Complete technical specifications for the XWV Case Style with flying leads.
