Emergency Lighting Products Wiring Diagrams
Hatch Emergency Lighting Products can be used in a variety of applications.
For fixtures with LED light sources including troffers with UL Type C LED Tubes, the driver can power the existing light source.
For Non-LED fixtures and troffers that use UL Type A or B LED Tubes, Hatch Emergency Drivers can be used in combination with the LED Modules to provide an emergency LED lighting solution on a non-LED fixture.
Recessed Fixture
Driver with integrated LiFePO4 battery is shown.
Flat Panel Fixture
Driver with integrated LiFePO4 battery is shown.
High Bay Fixture
Driver with integrated LiFePO4 battery is shown.
Alternative Wiring Diagrams for ELP Emergency Drivers With Integrated Battery
ELP07-2060-UNV, ELP10-2060-UNV, ELP14-2060-UNV
Independent LED Loads
NOTE: Existing fixture and light source can be LED Fluorescent, Halogen, or LED Tube
Shared LED Loads
Stand Alone LED Loads
ELP20-2060-UNV-SD
Independent LED Loads
NOTE: Existing fixture and light source can be LED Fluorescent, Halogen, or LED Tube

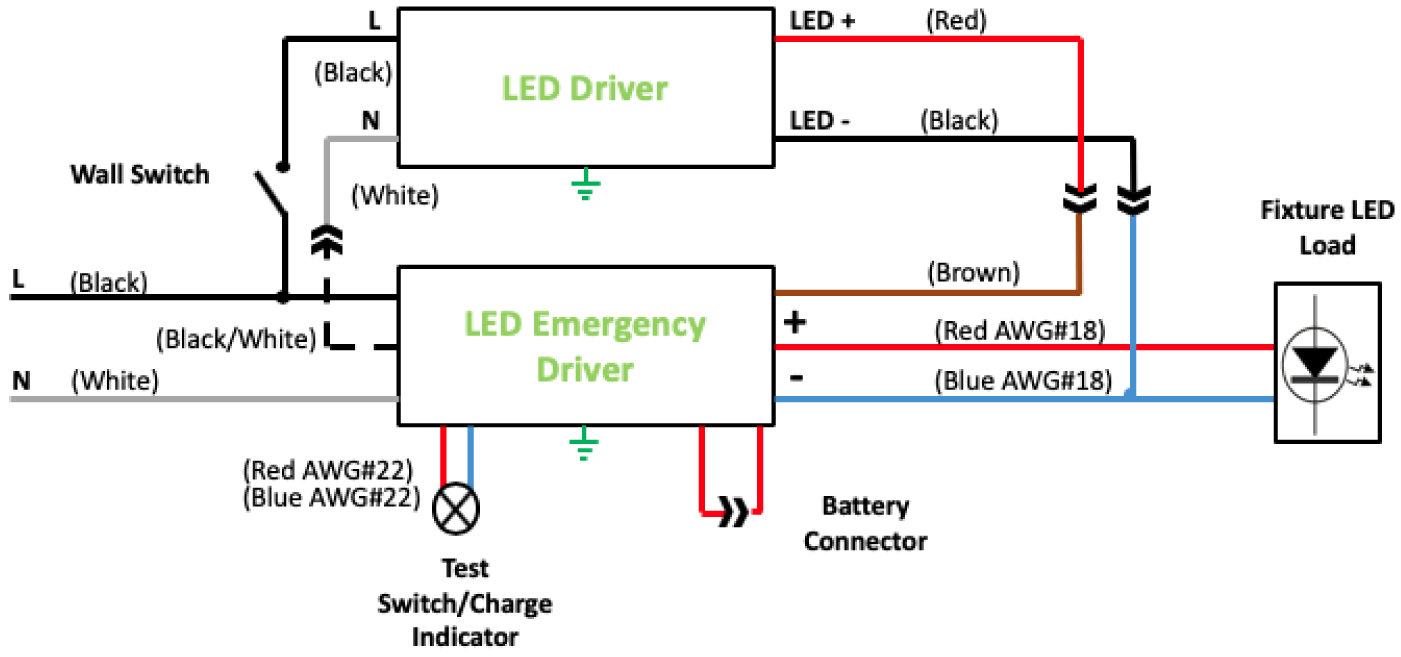

Shared LED Loads
Stand Alone LED Loads
Alternative Wiring Diagrams for ELP Emergency Drivers With Non-Integrated Battery
ELP05-UNV-K, ELP12-UNV-K
Independent LED Loads
NOTE: Existing fixture and light source can be LED Fluorescent, Halogen, or LED Tube

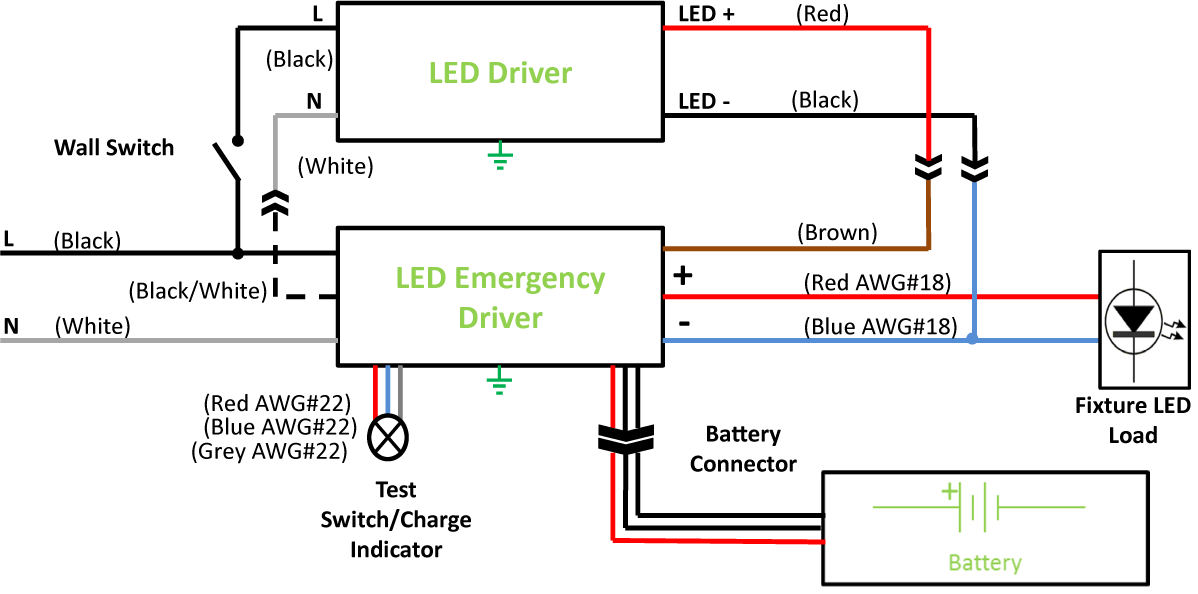

Shared LED Loads

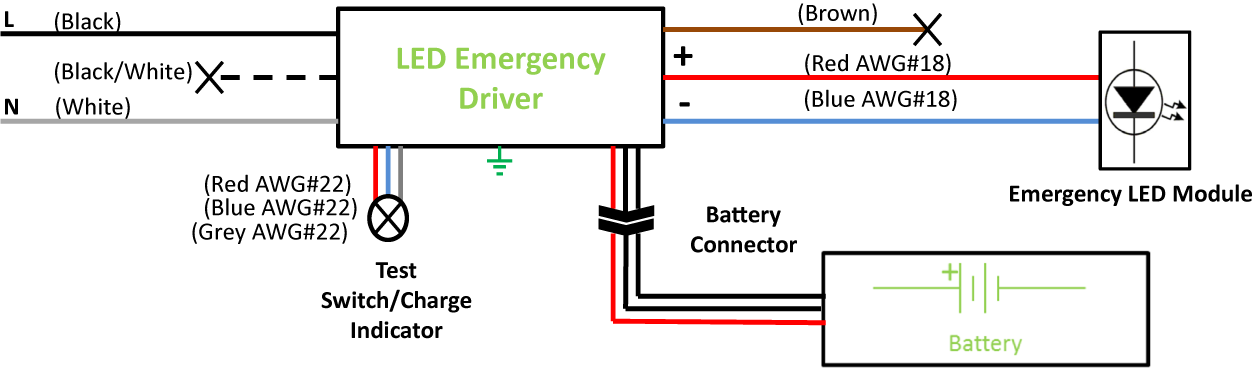

Stand Alone LED Loads
ELP07-UNV-K, ELP10-UNV-K, ELP14-UNV-K
Independent LED Loads
NOTE: Existing fixture and light source can be LED Fluorescent, Halogen, or LED Tube
Shared LED Loads

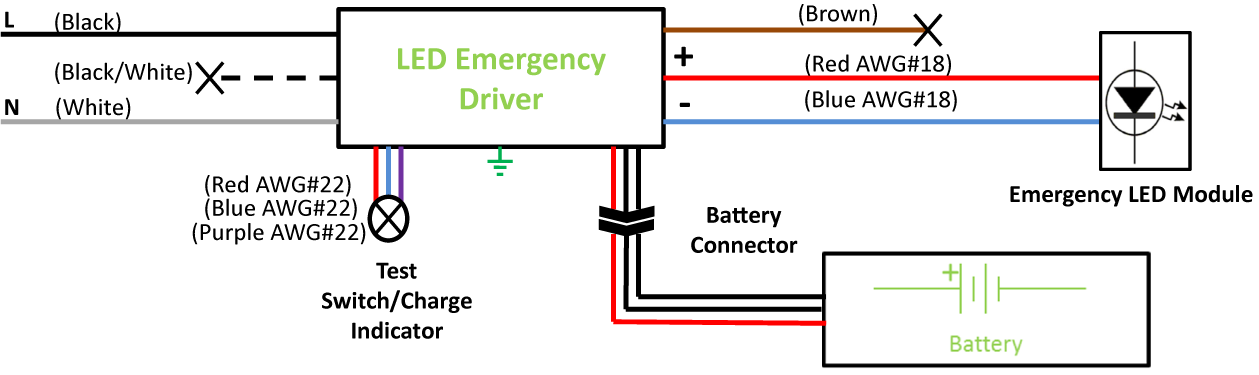

Stand Alone LED Loads
