LV100-12N-UNV-I

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

12VDC

Wattage

100W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV60-12N-UNV-I

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

12VDC

Wattage

60W

Dimming

No

UL

UL Listed

Key Programmable

no

HL296HO/IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

Ballast Factor

Normal

Lamp Type

F96T12/HO 110W, F96T12/HO/ES 95W, F72T12/HO 85W, F60T12/HO 75W, F48T12/HO 60W

Number of Lamps

1 or 2

Ignition

Instant

HL286HO/IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

Ballast Factor

Low

Lamp Type

F96T8/HO 86W

Number of Lamps

1 or 2

Ignition

Instant

HL275IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

Ballast Factor

Normal

Lamp Type

F96T12 75W, F96T12/ES 60W, F84T12 70W, F72T12 57W, F64T12 52W, F60T12 50W, F60T12 50W, F48T12/ES 30W

Number of Lamps

1 or 2

Ignition

Instant

HL275IS/12/W

Linear Fluorescent

Input Voltage

120 - 120VAC

Ballast Factor

Normal

Lamp Type

F96T12 75W, F96T12/ES 60W, F84T12 70W, F72T12 57W, F64T12 52W, F60T12 50W, F48T12 40W, F48T12/ES 30W

Number of Lamps

1 or 2

Ignition

Instant

HL259IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

Ballast Factor

Normal

Lamp Type

F96T8 59W, F96T8/ES 57W, F96T8/ES 51W, F72T8 46W

Number of Lamps

1 or 2

Ignition

Instant

HL254HO/PS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

Ballast Factor

Normal

Lamp Type

F54T5/HO, FC12T5/HO 55W, FT55W/2G11, FT50W/2G11, FT36W/2G11, F54T5/HO/ES 49W

Number of Lamps

1 or 2

Ignition

Programmed

ELP14-2060-UNV

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

241 - 700mA

Wattage

14W

UL

UL Listed

ESB-1040-14-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

352, 330W

UL

UL Listed

Lamp Type

F120T12HO, F96T8HO

Lamp Connection

Parallel

Number of Lamps

1, 2, 3 or 4

Ignition

Instant

ESB-0216-12-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

132, 122W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1 or 2

Ignition

Instant

X12V

Description

V-LOC Key Assembly, 12V

Key Programmable

Yes

X24V

Description

V-LOC Key Assembly, 24V

Key Programmable

Yes

X36V

Description

V-LOC Key Assembly, 36V

Key Programmable

Yes

X48V

Description

V-LOC Key Assembly, 48V

Key Programmable

Yes

XU050

Description

I-LOC Key Assembly Factor 0.50

Key Programmable

Yes

XP063

Description

I-LOC Key Assembly Factor 0.63

Key Programmable

Yes

XQ060

Description

I-LOC Key Assembly Factor 0.60

Key Programmable

Yes

XR058

Description

I-LOC Key Assembly Factor 0.58

Key Programmable

Yes

XS055

Description

I-LOC Key Assembly Factor 0.55

Key Programmable

Yes

XT053

Description

I-LOC Key Assembly Factor 0.53

Key Programmable

Yes

XK075

Description

I-LOC Key Assembly Factor 0.75

Key Programmable

Yes

XL073

Description

I-LOC Key Assembly Factor 0.73

Key Programmable

Yes

XM070

Description

I-LOC Key Assembly Factor 0.70

Key Programmable

Yes

XN068

Description

I-LOC Key Assembly Factor 0.68

Key Programmable

Yes

XO065

Description

I-LOC Key Assembly Factor 0.65

Key Programmable

Yes

XF088

Description

I-LOC Key Assembly Factor 0.88

Key Programmable

Yes

XG085

Description

I-LOC Key Assembly Factor 0.85

Key Programmable

Yes

XH083

Description

I-LOC Key Assembly Factor 0.83

Key Programmable

Yes

XI080

Description

I-LOC Key Assembly Factor 0.80

Key Programmable

Yes

XJ078

Description

I-LOC Key Assembly Factor 0.78

Key Programmable

Yes

XA100

Description

I-LOC Key Assembly Factor 1.00

Key Programmable

Yes

XB098

Description

I-LOC Key Assembly Factor 0.98

Key Programmable

Yes

XC095

Description

I-LOC Key Assembly Factor 0.95

Key Programmable

Yes

XD093

Description

I-LOC Key Assembly Factor 0.93

Key Programmable

Yes

XE090

Description

I-LOC Key Assembly Factor 0.90

Key Programmable

Yes

RL12-75ABF-277

Electronic Transformers

Input Voltage

277VAC

Output Voltage

11.5VAC

Wattage

75W

Dimming

No

UL

UL Recognized

Transformer Type

electronic

LC150-1050Z-UNV-BB

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

72 - 143VDC

Current Range

1050mA

Wattage

150W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-0700Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

43 - 86VDC

Current Range

700mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-1050Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

29 - 57VDC

Current Range

1050mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-1600Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

18 - 37VDC

Current Range

1600mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-2400Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 25VDC

Current Range

2400mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC100-0700Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

71 - 143VDC

Current Range

700mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC100-1050Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

48 - 95VDC

Current Range

1050mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC100-2100Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

2100mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

XRC34-1050Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC34-1050Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

LC36-0700Z-UNV-G

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

26 - 51VDC

Current Range

700mA

Wattage

36W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC36-1050Z-UNV-G

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 34VDC

Current Range

1050mA

Wattage

36W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Hide

LC40-0350Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

38 - 126VDC

Current Range

350mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC40-0700Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

19 - 57VDC

Current Range

700mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC40-1050Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 36VDC

Current Range

1050mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC50-0700Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

36 - 71VDC

Current Range

700mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC50-1050Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

1050mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC50-1400Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 35VDC

Current Range

1400mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC50-1050D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

1050mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC50-1200D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

21 - 42VDC

Current Range

1200mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC50-1400D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

18 - 36VDC

Current Range

1400mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC25-0500P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 50VDC

Current Range

500mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-0700P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-1050P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 24VDC

Current Range

1050mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-0700Z-347-P

LED - Constant Current

Input Voltage

347 - 347VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC30-0350Z-UNV-FF

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

42 - 85VDC

Current Range

350mA

Wattage

30W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC30-0700Z-UNV-FF

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

22 - 44VDC

Current Range

700mA

Wattage

30W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

XTC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC32-0700Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC32-0700Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XTC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

LC22-0350P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

21 - 63VDC

Current Range

350mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC22-0500P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 40VDC

Current Range

500mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC22-0700P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 32VDC

Current Range

700mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC25-0350Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 72VDC

Current Range

350mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0500Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 50VDC

Current Range

500mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0700Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-1050Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 24VDC

Current Range

1050mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0350P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

24 - 72VDC

Current Range

350mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0350P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC16-0700P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC16-0350Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0500Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0700Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

10 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0350P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0500P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0700P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

7 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC20-0350Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

28 - 57VDC

Current Range

350mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC20-0500Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 40VDC

Current Range

500mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC20-0700Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 28VDC

Current Range

700mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC22-0700Z-UNV-S

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

16 - 32VDC

Current Range

700mA

Wattage

22W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC14-0260P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

18 - 54VDC

Current Range

260mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0350P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0500P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 28VDC

Current Range

500mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0700P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 20VDC

Current Range

700mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0350Z-UNV-S

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

XTC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC16-0350Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC16-0350Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

LC16-0500N-UNV-D

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

10 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCA004-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

8 - 13VDC

Current Range

350mA

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCB004-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

2.8 - 6.5VDC

Current Range

700mA

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCA009-RL-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 24VDC

Current Range

350mA

Wattage

8W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCB009-RL-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

6 - 12VDC

Current Range

700mA

Wattage

8W

Dimming

No

UL

UL Recognized

Key Programmable

no

LC12-0350Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC12-0500Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC12-0700Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC12-0260P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

23 - 46VDC

Current Range

260mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0500P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0700P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

6 - 32VDC

Current Range

350mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0500P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

5 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0700P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

5 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350N-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

No

UL

UL Recognized

Key Programmable

no

LC14-0350N-UNV-C

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

15 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

No

UL

UL Listed Class P

Key Programmable

no

LC14-0700N-UNV-C

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

7 - 20VDC

Current Range

700mA

Wattage

14W

Dimming

No

UL

UL Listed Class P

Key Programmable

no

XWV60-1248Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

12 - 48VDC

Wattage

60W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

XWV96-2448Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Wattage

96W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

XKV40-1248Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

12 - 48VDC

Wattage

40W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

XKV60-1248Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

12 - 48VDC

Wattage

60W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

XKV96-2448Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Wattage

96W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

LV100-24N-UNV-I

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

100W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV100-24N-UNV-J

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

100W

Dimming

No

UL

UL Listed

Key Programmable

no

XWV40-1248Z-UNV-I

LED - Constant Voltage V-LOC

Input Voltage

120 - 277VAC

Output Voltage

12 - 48VDC

Wattage

40W

Dimming

0 - 10v, TOUCH

UL

UL Listed Class P

Key Programmable

Yes

LV60-24N-UNV-I

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

60W

Dimming

No

UL

UL Listed

Key Programmable

no

LV60-24T-1227-KK

LED - Constant Voltage

Input Voltage

120 or 277VAC

Output Voltage

24VDC

Wattage

60W

Dimming

MLV Triac

UL

UL Listed

Key Programmable

no

LV80-24N-UNV-I

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

80W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV004W-12-UNV

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

12VDC

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV004W-24-UNV

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV10-12N-120-A

LED - Constant Voltage

Input Voltage

120 - 120VAC

Output Voltage

12VDC

Wattage

10W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV10-24N-120-A

LED - Constant Voltage

Input Voltage

120 - 120VAC

Output Voltage

24VDC

Wattage

10W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV12-12N-UNV-Y

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

12VDC

Wattage

12W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV12-24N-UNV-Y

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

12W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV24-12N-UNV-D

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

12VDC

Wattage

24W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV24-24N-UNV-D

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

24W

Dimming

No

UL

UL Recognized

Key Programmable

no

LV40-24N-UNV-W

LED - Constant Voltage

Input Voltage

120 - 277VAC

Output Voltage

24VDC

Wattage

40W

Dimming

No

UL

UL Listed Class P

Key Programmable

no

RS12-60M-LED-FCC

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

60W

Dimming

Phase

UL

UL Recognized

RL12-75A

Electronic Transformers

Input Voltage

120VAC

Output Voltage

11.5VAC

Wattage

75W

Dimming

Phase

UL

UL Recognized

Transformer Type

electronic

Wire Feed

Side

RL12-75ABF

Electronic Transformers

Input Voltage

120VAC

Output Voltage

11.5VAC

Wattage

75W

Dimming

Phase

UL

UL Recognized

Transformer Type

electronic

Wire Feed

Bottom

RL12-75A-277

Electronic Transformers

Input Voltage

277VAC

Output Voltage

11.5VAC

Wattage

75W

Dimming

No

UL

UL Recognized

Transformer Type

electronic

Wire Feed

Side

RS12-60M-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

60W

Dimming

Phase

UL

UL Recognized

RS12-60BF-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

60W

Dimming

Phase

UL

UL Recognized

RL12-60M-LED-277

LED - AC

Input Voltage

277VAC

Output Voltage

12VAC

Wattage

60W

Dimming

No

UL

UL Recognized

RL12-60BF-LED-277

LED - AC

Input Voltage

277VAC

Output Voltage

12VAC

Wattage

60W

Dimming

No

UL

UL Recognized

RL12-75-230WD

Electronic Transformers

Input Voltage

230VAC

Output Voltage

12VAC

Current

0.31mA

Wattage

75W

Dimming

Yes

UL

UL Recognized

Transformer Type

electronic

Wire Feed

M

RS12-15M-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

15W

Dimming

Phase

UL

UL Recognized

RL12-15M-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

15W

Dimming

Phase

UL

UL Recognized

RL12-15BF-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

15W

Dimming

Phase

UL

UL Recognized

RL12-15M-LED-277

LED - AC

Input Voltage

277VAC

Output Voltage

12VAC

Wattage

15W

Dimming

No

UL

UL Recognized

RL12-15BF-LED-277

LED - AC

Input Voltage

277VAC

Output Voltage

12VAC

Wattage

15W

Dimming

No

UL

UL Recognized

RL12-30M-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

30W

Dimming

Phase

UL

UL Recognized

RL12-30M-LED-277

LED - AC

Input Voltage

277VAC

Output Voltage

12VAC

Wattage

30W

Dimming

No

UL

UL Recognized

RL12-60M-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

60W

Dimming

Phase

UL

UL Recognized

RL12-60BF-LED

LED - AC

Input Voltage

120VAC

Output Voltage

12VAC

Wattage

60W

Dimming

Phase

UL

UL Recognized

HC226PS/UV/D

Compact Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Lamp Type

CFQ26W/G24q, CFTR26W/GX24q, CFS21W/GR10q, CFTR42W/GX24q, CFTR32W/GX24q, CFTR57W/GX24q, CFQ57W/G24q, CFS38W/GR10q, FT24W/2G11, FT18W/2G11, FT40W/2G11, FT39W/2G11, FT36W/2G11, FC16T9/G10q, FC12T5/2GX13, FC9T5/2GX13

Number of Lamps

1 or 2

Ignition

Programmed

HC213/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

13W CFL

HC218/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

18W CFL

HC226/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

26W CFL

HC242/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

42W CFL

ESB-0848-46-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

410, 370W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1 or 2

Ignition

Instant

ESB-0432-14-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

267, 244W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1, 2, 3 or 4

Ignition

Instant

LS1250ENT

Transformers

Input Voltage

120VAC

Output Voltage

11.5VAC

Wattage

50W

Dimming

Yes

UL

UL Recognized

Transformer Type

magnetic

LS1250ENT-277

Transformers

Input Voltage

277VAC

Output Voltage

11.5VAC

Wattage

50W

Dimming

No

UL

UL Recognized

Transformer Type

magnetic

LS120-75EN-277

Autotransformers

Input Voltage

277VAC

Output Voltage

120VAC

Wattage

75W

Dimming

No

UL

UL Recognized

Transformer Type

magnetic

LS120-75EN-347

Autotransformers

Input Voltage

347VAC

Output Voltage

120VAC

Wattage

75W

Dimming

No

UL

UL Recognized

Transformer Type

magnetic

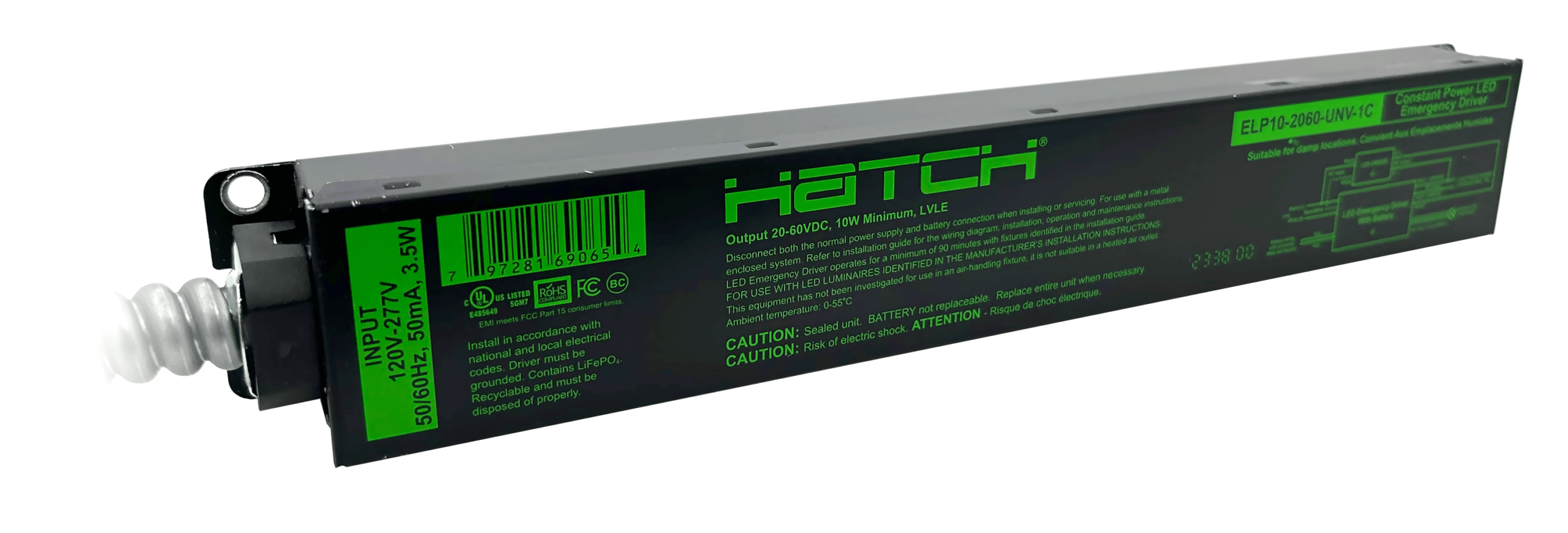

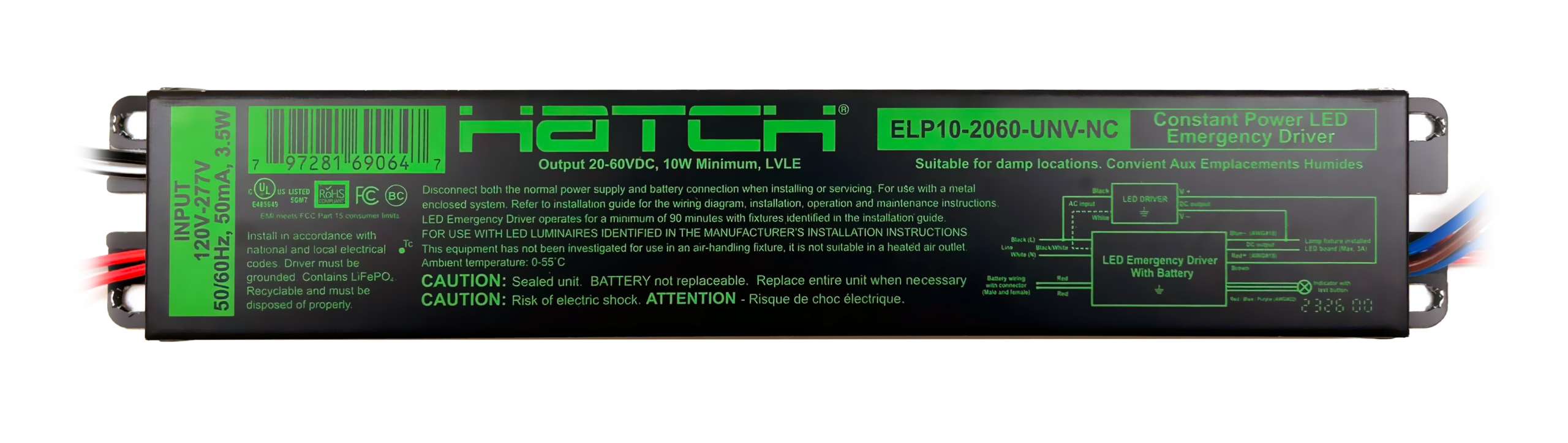

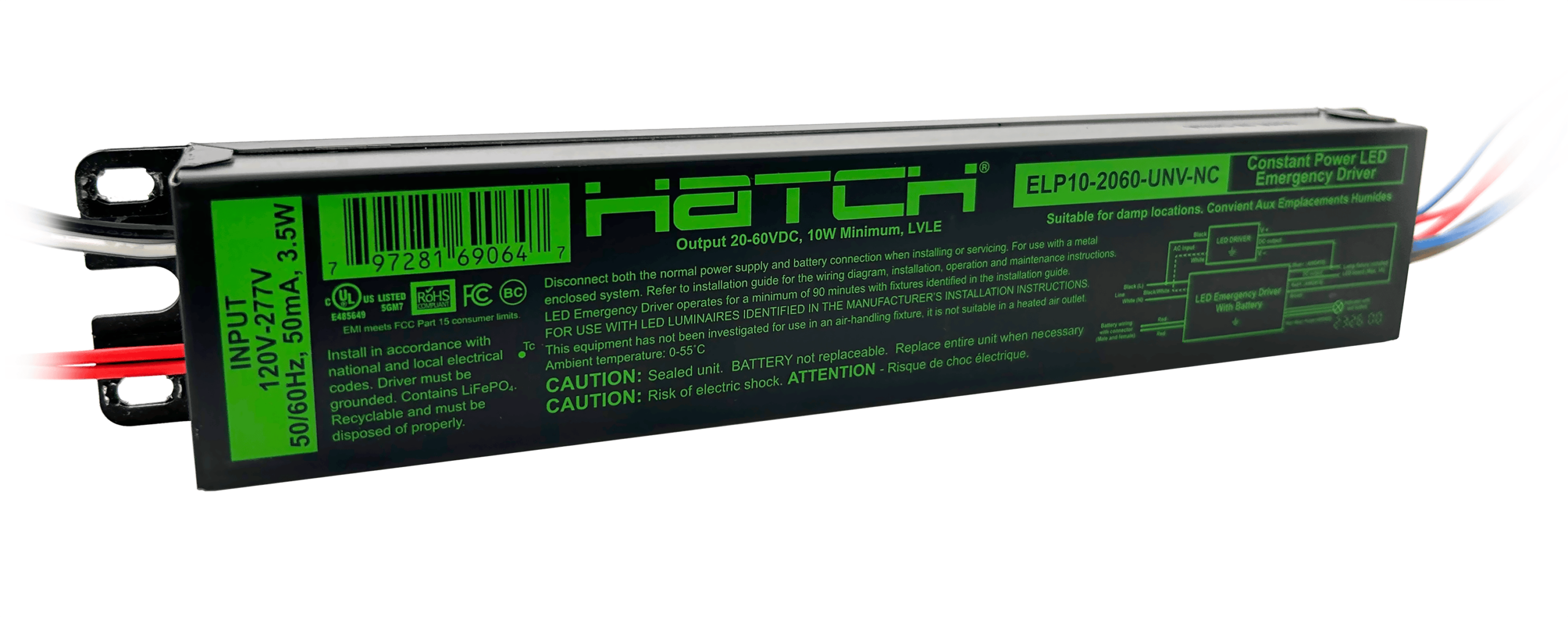

ELP10-2060-UNV

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

172 - 500mA

Wattage

10W

UL

UL Listed

ELP20-2060-UNV-SD

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

333 - 1000mA

Wattage

20W

UL

UL Listed

ELP07-UNV-K

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

120 - 350mA

Wattage

7W

UL

UL Listed

ELP10-UNV-K

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

172 - 500mA

Wattage

10W

UL

UL Listed

ELP14-UNV-K

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

241 - 700mA

Wattage

14W

UL

UL Listed

ELP12-UNV-K

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

12 - 39VDC

Current Range

300 - 930mA

Wattage

12W

UL

UL Listed

ELP07-LED-K

Emergency Lighting Products

Description

For use with ELP05 and ELP07 Emergency Drivers

ELP12-LED-K

Emergency Lighting Products

Description

For use with ELP10 and ELP12 Emergency Drivers

ELP20-LED-K

Emergency Lighting Products

Description

For use with ELP14 and ELP20 Emergency Drivers

ELP07-2060-UNV

Emergency Lighting Products

Input Voltage

120 - 277VAC

Output Voltage

20 - 60VDC

Current Range

120 - 350mA

Wattage

7W

UL

UL Listed

HL240IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Ballast Factor

Normal

Lamp Type

F40T12 & U, F34T12 & U, F40T12 25W, F30T12

Number of Lamps

2

Ignition

Instant

HL254HO/PS/UV/S

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Ballast Factor

High

Lamp Type

F34T12 & U, F40T12 25W, FC12T5/HO 55W, FT55W/2G11, FT50W/2G11, FT36W/2G11, F54T5/HO/ES 49W

Number of Lamps

1 or 2

Ignition

Programmed

HL432BIS/UV/HE/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed Class P

Ballast Factor

Normal

Lamp Type

F32T8 32W, F32T8 32W, F32T8 30W, F32T8 30W, F32T8 28W, F32T8 28W, F32T8 25W, F32T8 25W, F25T8 25W, F25T8 25W, F17T8 17W, F17T8 17W, F40T8 40W

Number of Lamps

3 or 4

Ignition

Instant

HL232BIS/UV/HE/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed Class P

Ballast Factor

Normal

Lamp Type

F32T8 32W, F32T8 30W, F32T8 28W, F32T8 25W, F17T8 17W, F40T8 40W

Number of Lamps

1 or 2

Ignition

Instant

MC39-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

39W

UL

UL Listed

Lamp Type

M130 CMH

Mounting

Studs

Wire Feed

Bottom

MC70-1F-UNNS

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Feet

Wire Feed

Two Sides

MC70-1T-UNNS

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Track

Wire Feed

Two Sides

MC70-1F-UNNSL

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Track

Wire Feed

One Side

MC70-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Feet

Wire Feed

One Side

MC70-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Studs

Wire Feed

Bottom

MC20-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

20W

UL

UL Listed

Lamp Type

M/C156 CMH

Mounting

Feet

Wire Feed

One Side

MC20-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

20W

UL

UL Listed

Lamp Type

M/C156 CMH

Mounting

Studs

Wire Feed

Bottom

MC39-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

39W

UL

UL Listed

Lamp Type

M130 CMH

Mounting

Feet

Wire Feed

One Side

LSP3-10-UNV

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

10kA

EoL Indicator

No

LSP3-10L-UNV

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

10kA

EoL Indicator

Yes

LSP3-20-UNV

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

20kA

EoL Indicator

No

LSP3-20L-UNV

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

20kA

EoL Indicator

Yes

LSP3-20-480

Surge Protection Devices

Input Voltage

347 - 480VAC

UL

UL Recognized

Protection Level

20kA

EoL Indicator

Yes

LSP3-20L-480

Surge Protection Devices

Input Voltage

347 - 480VAC

UL

UL Recognized

Protection Level

20kA

EoL Indicator

Yes

LSP4-UNV

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

10kA; 20kA L-N

EoL Indicator

No

LSP4-480

Surge Protection Devices

Input Voltage

347 - 480VAC

UL

UL Recognized

Protection Level

10kA; 20kA L-N

EoL Indicator

No

LSP10-SM

Surge Protection Devices

Input Voltage

120 - 277VAC

UL

UL Recognized

Protection Level

10kA

EoL Indicator

No
