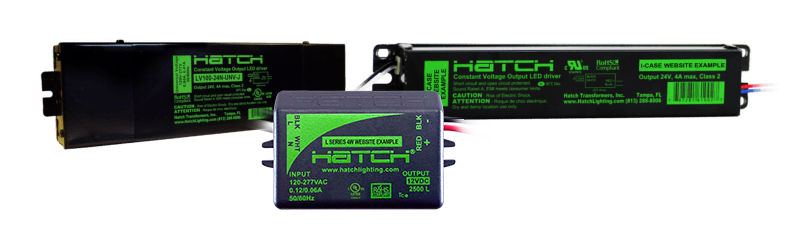

L-SERIES CONSTANT VOLTAGE LED DRIVERS
Choose from a wide variety of constant voltage LED driver case styles.
Our L-Series Constant Voltage LED Driver family is extensive. The product family covers a wide range of output voltage, output power, case sizes, and input voltages. All drivers are either UL recognized or UL Listed and in most cases are Class 2. Many are available in ‘knockout’ style housings, with separate wiring compartments for input and output leads. This facilitates on-site wiring by complying with most NEMA and local codes. For more environmentally-challenging applications, many are available in outdoor-rated IP66 or IP67 packaging. Many models are available in the UL Sign Accessories Manual (SAM).
LV004W-12-UNV
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
4W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV004W-24-UNV
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
4W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV10-12N-120-A
LED - Constant Voltage
Input Voltage
120 - 120VAC
Output Voltage
12VDC
Wattage
10W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV10-24N-120-A
LED - Constant Voltage
Input Voltage
120 - 120VAC
Output Voltage
24VDC
Wattage
10W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV100-12N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
100W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV100-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
100W
Dimming
No
UL
UL Recognized
Key Programmable
no

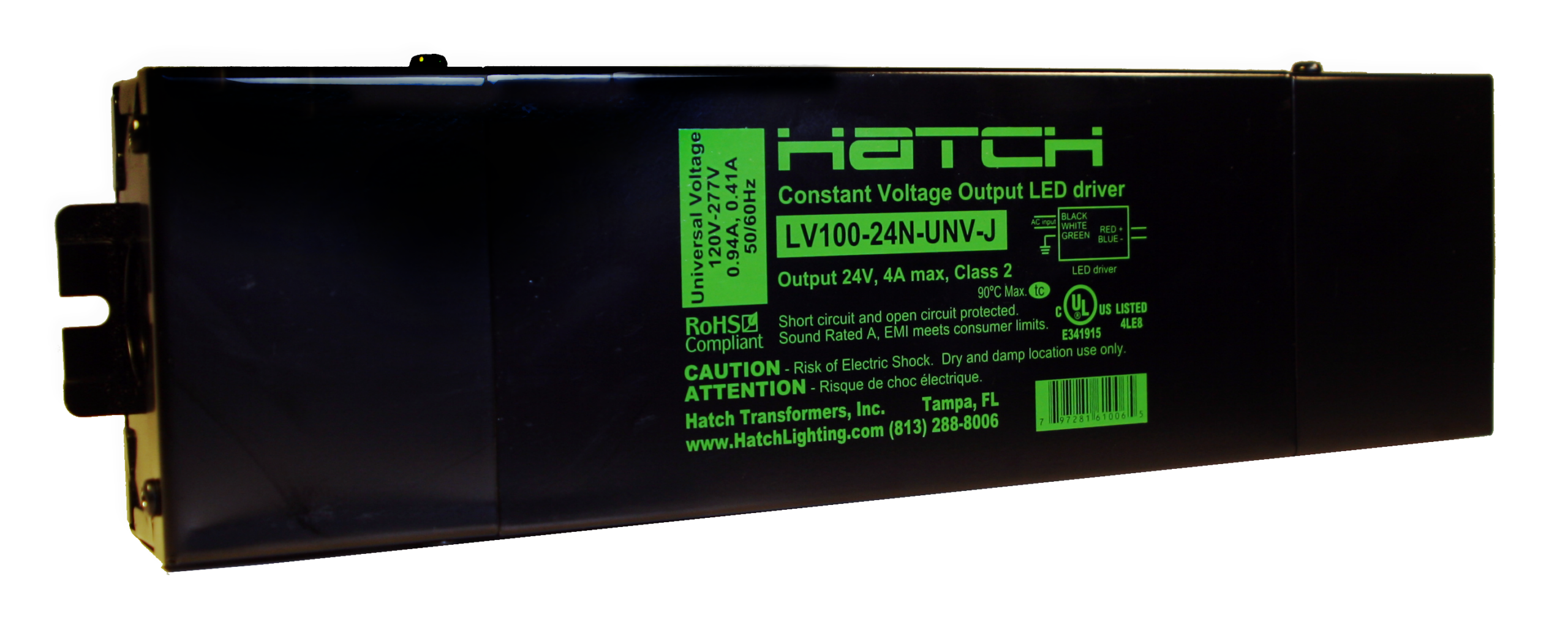

LV100-24N-UNV-J
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
100W
Dimming
No
UL
UL Listed
Key Programmable
no
LV12-12N-UNV-Y
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
12W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV12-24N-UNV-Y
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
12W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV24-12N-UNV-D
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
24W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV24-24N-UNV-D
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
24W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV40-24N-UNV-W
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
40W
Dimming
No
UL
UL Listed Class P
Key Programmable
no
LV60-12N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
60W
Dimming
No
UL
UL Listed
Key Programmable
no
LV60-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
60W
Dimming
No
UL
UL Listed
Key Programmable
no
LV60-24T-1227-KK
LED - Constant Voltage
Input Voltage
120 or 277VAC
Output Voltage
24VDC
Wattage
60W
Dimming
MLV Triac
UL
UL Listed
Key Programmable
no
LV80-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
80W
Dimming
No
UL
UL Recognized
Key Programmable
no
X12V
LED - Constant Voltage
Description
V-LOC Key Assembly, 12V
Key Programmable
Yes
X24V
LED - Constant Voltage
Description
V-LOC Key Assembly, 24V
Key Programmable
Yes
X36V
LED - Constant Voltage
Description
V-LOC Key Assembly, 36V
Key Programmable
Yes
X48V
LED - Constant Voltage
Description
V-LOC Key Assembly, 48V
Key Programmable
Yes
XKV40-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
40W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XKV60-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
60W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XKV96-2448Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24 - 48VDC
Wattage
96W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XWV40-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
40W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XWV60-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
60W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XWV96-2448Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24 - 48VDC
Wattage
96W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
