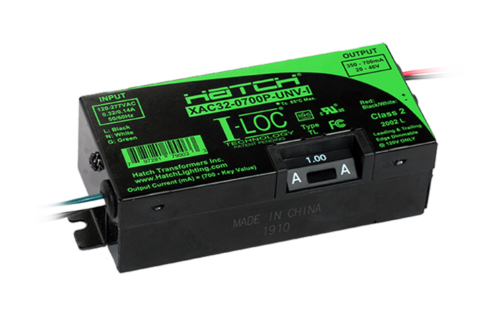

I-LOC KEY PROGRAMMABLE CONSTANT CURRENT LED DRIVERS

Programming Made Easy

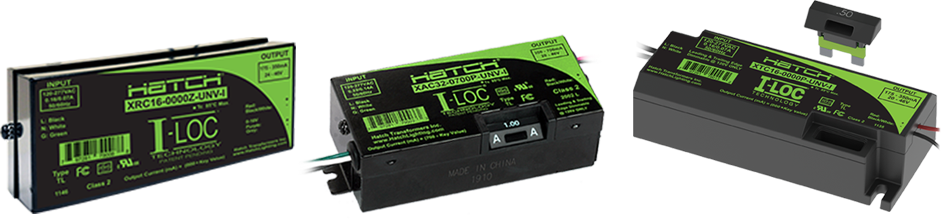

The I-LOC family of Key Programmable Constant Current LED Drivers use a ‘pick and click’ technology for rapidly programming the output current. Featuring a full set of keys that give each driver a wide range of output currents, no additional programming tools or software are required. This reduces driver inventory and simplifies manufacturing.

A single I-LOC Driver has 21 different key setting and covers 50% power up to maximum output. Plus, the keys are interchangeable across the entire I-LOC LED Driver product family.



Key Benefits



  • Faster Speed To Market
  • No Extra Equipment
  • Phase Dimming Available
  • 0-10 Dimming Available
  • Cross-platform Compatibility
  • Reduced SKUs
  • No Special Training
  • Instant-on, 125ms
  • Type TL

Demo Video

This 2 minute video explains how I-LOC’s innovative design eliminates the need for extra computer or RSET equipment.

Watch Video

XTC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC16-0350P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC16-0350Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC16-0350Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XTC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC32-0700P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC32-0700Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC32-0700Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XTC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC34-1050P-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC34-1050Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC34-1050Z-UNV-I

LED - Constant Current I-LOC

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

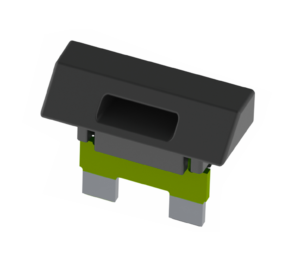

XA100

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 1.00

Key Programmable

Yes

XB098

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.98

Key Programmable

Yes

XC095

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.95

Key Programmable

Yes

XD093

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.93

Key Programmable

Yes

XE090

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.90

Key Programmable

Yes

XF088

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.88

Key Programmable

Yes

XG085

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.85

Key Programmable

Yes

XH083

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.83

Key Programmable

Yes

XI080

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.80

Key Programmable

Yes

XJ078

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.78

Key Programmable

Yes

XK075

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.75

Key Programmable

Yes

XL073

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.73

Key Programmable

Yes

XM070

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.70

Key Programmable

Yes

XN068

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.68

Key Programmable

Yes

XO065

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.65

Key Programmable

Yes

XP063

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.63

Key Programmable

Yes

XQ060

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.60

Key Programmable

Yes

XR058

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.58

Key Programmable

Yes

XS055

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.55

Key Programmable

Yes

XT053

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.53

Key Programmable

Yes

XU050

LED - Constant Current I-LOC

Description

I-LOC Key Assembly Factor 0.50

Key Programmable

Yes

XTC16-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XTC16-P, XL073, XG085, XA100

Key Programmable

Yes

XRC16-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC16-P,XL073,XG085,XA100

Key Programmable

Yes

XRC16-Z-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC16-Z,XL073,XG085,XA100

Key Programmable

Yes

XTC32-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XTC32-P,XU050,XL073,XA100

Key Programmable

Yes

XRC32-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC32-P,XU050,XL073,XA100

Key Programmable

Yes

XRC32-Z-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC32-Z,XU050,XL073,XA100

Key Programmable

Yes

XTC34-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XTC34-P,XU050,XN068,XA100

Key Programmable

Yes

XRC34-P-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC34-P,XU050,XN068,XA100

Key Programmable

Yes

XRC34-Z-KIT

LED - Constant Current I-LOC

Description

I-LOC XRC34-Z,XU050,XN068,XA100

Key Programmable

Yes

I-LOC SAMPLE KIT

LED - Constant Current I-LOC

Description

I-LOC SAMPLE KEY KIT

Key Programmable

Yes
