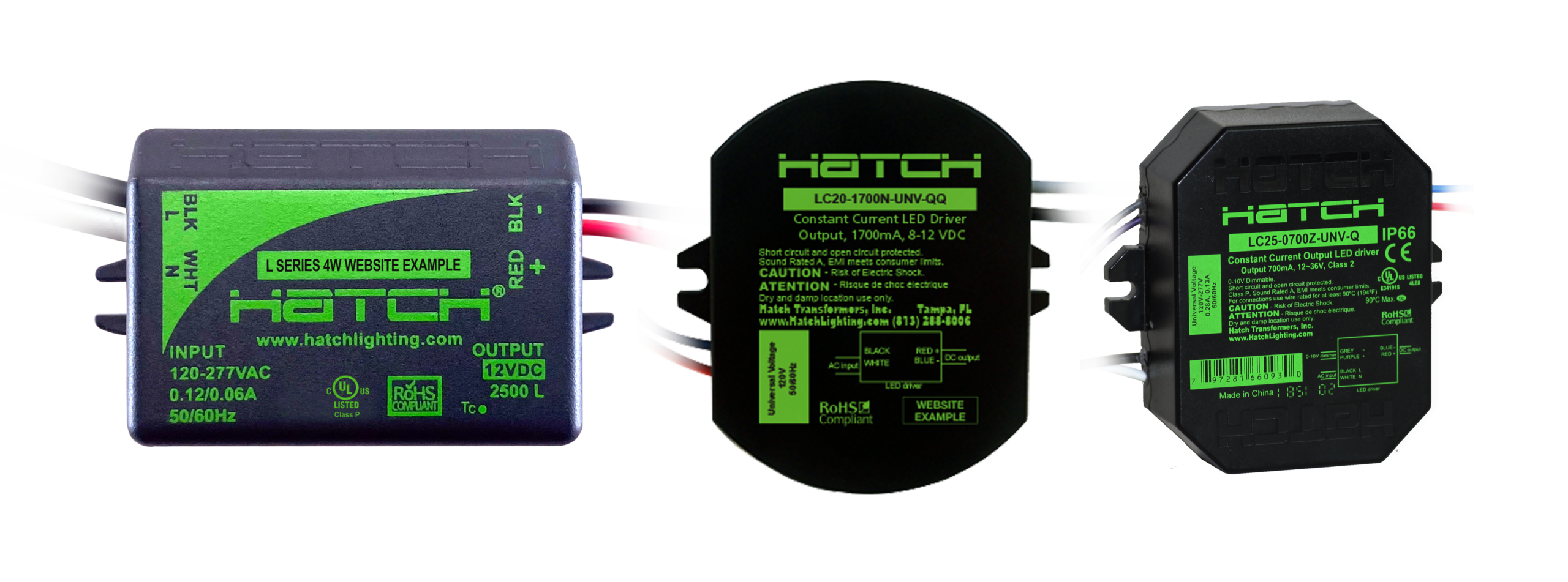

L- Series Constant Current LED Drivers

Constant Current LED Drivers in Stock Now

Our L-Series Constant Current LED Driver family is extensive and covers a wide range of output currents, output power, case sizes, dimming options and input voltages. All drivers are either UL recognized or UL Listed Class P and in most cases are Class 2 outputs. For more environmentally-challenging applications, many are available in outdoor-rated IP66 or IP67 packaging. We have over 200 models to choose from in stock for fast delivery.



LC100-0700Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

71 - 143VDC

Current Range

700mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC100-1050Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

48 - 95VDC

Current Range

1050mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC100-2100Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

2100mA

Wattage

100W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC12-0260P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

23 - 46VDC

Current Range

260mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350N-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

No

UL

UL Recognized

Key Programmable

no

LC12-0350P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

6 - 32VDC

Current Range

350mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0350Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 34VDC

Current Range

350mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC12-0500P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0500P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

5 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0500Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 24VDC

Current Range

500mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC12-0700P-120-B

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0700P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

5 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC12-0700Z-UNV-B

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 17VDC

Current Range

700mA

Wattage

12W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC14-0260P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

18 - 54VDC

Current Range

260mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0350N-UNV-C

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

15 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

No

UL

UL Listed Class P

Key Programmable

no

LC14-0350P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0350Z-UNV-S

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 40VDC

Current Range

350mA

Wattage

14W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC14-0500P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 28VDC

Current Range

500mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC14-0700N-UNV-C

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

7 - 20VDC

Current Range

700mA

Wattage

14W

Dimming

No

UL

UL Listed Class P

Key Programmable

no

LC14-0700P-120-C

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 20VDC

Current Range

700mA

Wattage

14W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC150-1050Z-UNV-BB

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

72 - 143VDC

Current Range

1050mA

Wattage

150W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0350P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC16-0350P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0350Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

15 - 46VDC

Current Range

350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0500N-UNV-D

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

10 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

No

UL

UL Recognized

Key Programmable

no

LC16-0500P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0500Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

500mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC16-0700P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

8 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC16-0700P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

7 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC16-0700Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

10 - 23VDC

Current Range

700mA

Wattage

16W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC20-0350Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

28 - 57VDC

Current Range

350mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC20-0500Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 40VDC

Current Range

500mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC20-0700Z-UNV-AA

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 28VDC

Current Range

700mA

Wattage

20W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC22-0350P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

21 - 63VDC

Current Range

350mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC22-0500P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 40VDC

Current Range

500mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC22-0700P-120-D

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 32VDC

Current Range

700mA

Wattage

22W

Dimming

Phase

UL

UL Recognized

Key Programmable

no

LC22-0700Z-UNV-S

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

16 - 32VDC

Current Range

700mA

Wattage

22W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0350P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

24 - 72VDC

Current Range

350mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-0350Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 72VDC

Current Range

350mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0500P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

17 - 50VDC

Current Range

500mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-0500Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 50VDC

Current Range

500mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-0700P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-0700Z-347-P

LED - Constant Current

Input Voltage

347 - 347VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC25-0700Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 36VDC

Current Range

700mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC25-1050P-120-Q

LED - Constant Current

Input Voltage

120 - 120VAC

Output Voltage

10 - 24VDC

Current Range

1050mA

Wattage

25W

Dimming

Phase

UL

UL Listed Class P

Key Programmable

no

LC25-1050Z-UNV-Q

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 24VDC

Current Range

1050mA

Wattage

25W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC30-0350Z-UNV-FF

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

42 - 85VDC

Current Range

350mA

Wattage

30W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC30-0700Z-UNV-FF

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

22 - 44VDC

Current Range

700mA

Wattage

30W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC36-0700Z-UNV-G

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

26 - 51VDC

Current Range

700mA

Wattage

36W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC36-1050Z-UNV-G

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 34VDC

Current Range

1050mA

Wattage

36W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC40-0350Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

38 - 126VDC

Current Range

350mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC40-0700Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

19 - 57VDC

Current Range

700mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC40-1050Z-UNV-W

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 36VDC

Current Range

1050mA

Wattage

40W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

no

LC50-0700Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

36 - 71VDC

Current Range

700mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC50-1050D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

1050mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC50-1050Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 48VDC

Current Range

1050mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC50-1200D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

21 - 42VDC

Current Range

1200mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC50-1400D-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

18 - 36VDC

Current Range

1400mA

Wattage

50W

Dimming

0-10V, ELV

UL

UL Listed Class P

Key Programmable

no

LC50-1400Z-UNV-T

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 35VDC

Current Range

1400mA

Wattage

50W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-0700Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

43 - 86VDC

Current Range

700mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-1050Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

29 - 57VDC

Current Range

1050mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-1600Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

18 - 37VDC

Current Range

1600mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LC60-2400Z-UNV-F

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

12 - 25VDC

Current Range

2400mA

Wattage

60W

Dimming

0 - 10V

UL

UL Listed Class P

Key Programmable

no

LCA004-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

8 - 13VDC

Current Range

350mA

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCA009-RL-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

9 - 24VDC

Current Range

350mA

Wattage

8W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCB004-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

2.8 - 6.5VDC

Current Range

700mA

Wattage

4W

Dimming

No

UL

UL Recognized

Key Programmable

no

LCB009-RL-UNV

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

6 - 12VDC

Current Range

700mA

Wattage

8W

Dimming

No

UL

UL Recognized

Key Programmable

no

XA100

LED - Constant Current

Description

I-LOC Key Assembly Factor 1.00

Key Programmable

Yes

XAC16-0350P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC16-0350Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC32-0700P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC32-0700Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XAC34-1050P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XAC34-1050Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XB098

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.98

Key Programmable

Yes

XC095

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.95

Key Programmable

Yes

XD093

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.93

Key Programmable

Yes

XE090

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.90

Key Programmable

Yes

XF088

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.88

Key Programmable

Yes

XG085

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.85

Key Programmable

Yes

XH083

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.83

Key Programmable

Yes

XI080

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.80

Key Programmable

Yes

XJ078

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.78

Key Programmable

Yes

XK075

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.75

Key Programmable

Yes

XL073

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.73

Key Programmable

Yes

XM070

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.70

Key Programmable

Yes

XN068

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.68

Key Programmable

Yes

XO065

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.65

Key Programmable

Yes

XP063

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.63

Key Programmable

Yes

XQ060

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.60

Key Programmable

Yes

XR058

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.58

Key Programmable

Yes

XRC16-0350P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC16-0350Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XRC32-0700P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC32-0700Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

24 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XRC34-1050P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XRC34-1050Z-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

17 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

0 - 10V

UL

UL Recognized

Key Programmable

Yes

XS055

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.55

Key Programmable

Yes

XT053

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.53

Key Programmable

Yes

XTC16-0350P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

175 - 350mA

Wattage

16W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XTC32-0700P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

20 - 46VDC

Current Range

350 - 700mA

Wattage

32W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XTC34-1050P-UNV-I

LED - Constant Current

Input Voltage

120 - 277VAC

Output Voltage

14 - 32VDC

Current Range

525 - 1050mA

Wattage

34W

Dimming

Phase

UL

UL Recognized

Key Programmable

Yes

XU050

LED - Constant Current

Description

I-LOC Key Assembly Factor 0.50

Key Programmable

Yes
