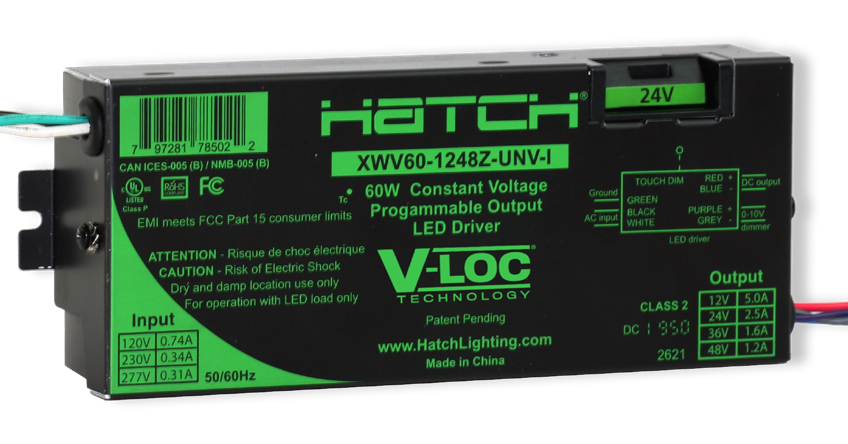

V-LOC KEY PROGRAMMABLE CONSTANT VOLTAGE LED DRIVERS

NEW! Our Most Versatile Driver Yet.

At Hatch we have a long tradition of developing unique and innovative power supply solutions for the lighting industry. In developing V-LOC, we recognized a market need for a programmable constant voltage LED driver that would provide smooth, flicker-free dimming and excellent color quality reproduction with a wide variety of commercially available constant voltage LED loads. V-LOC was designed from the ground up to become the industry benchmark for delivering precise dimming control, excellent color reproduction and unrivaled versatility.

Learn How V-LOC Works

Color

Our unique proprietary dimming technology ensures high quality color reproduction throughout the entire dimming range.

Control

0-10V and TOUCH Dimming are standard on all V-LOC models, providing consistent, flicker free dimming down to 1% and dim-to-off capability.

Versatility

V-LOC key technology enables output voltage programming from 12V to 48V with one driver.

Product Specifications

  • Smooth, flicker-free dimming down to 1%
  • 0-10V and TOUCH Dimming on all models†
  • Consistent color quality reproduction throughout the full dimming range
  • Dim-To-Off Capability
  • Universal Input: 90VAC-305 VAC

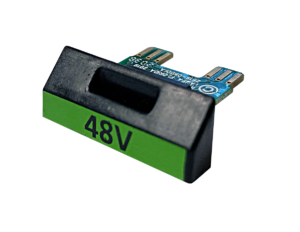

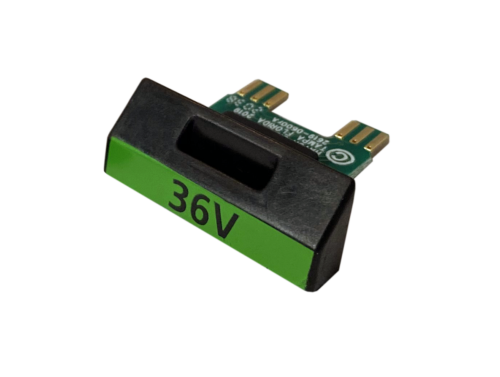

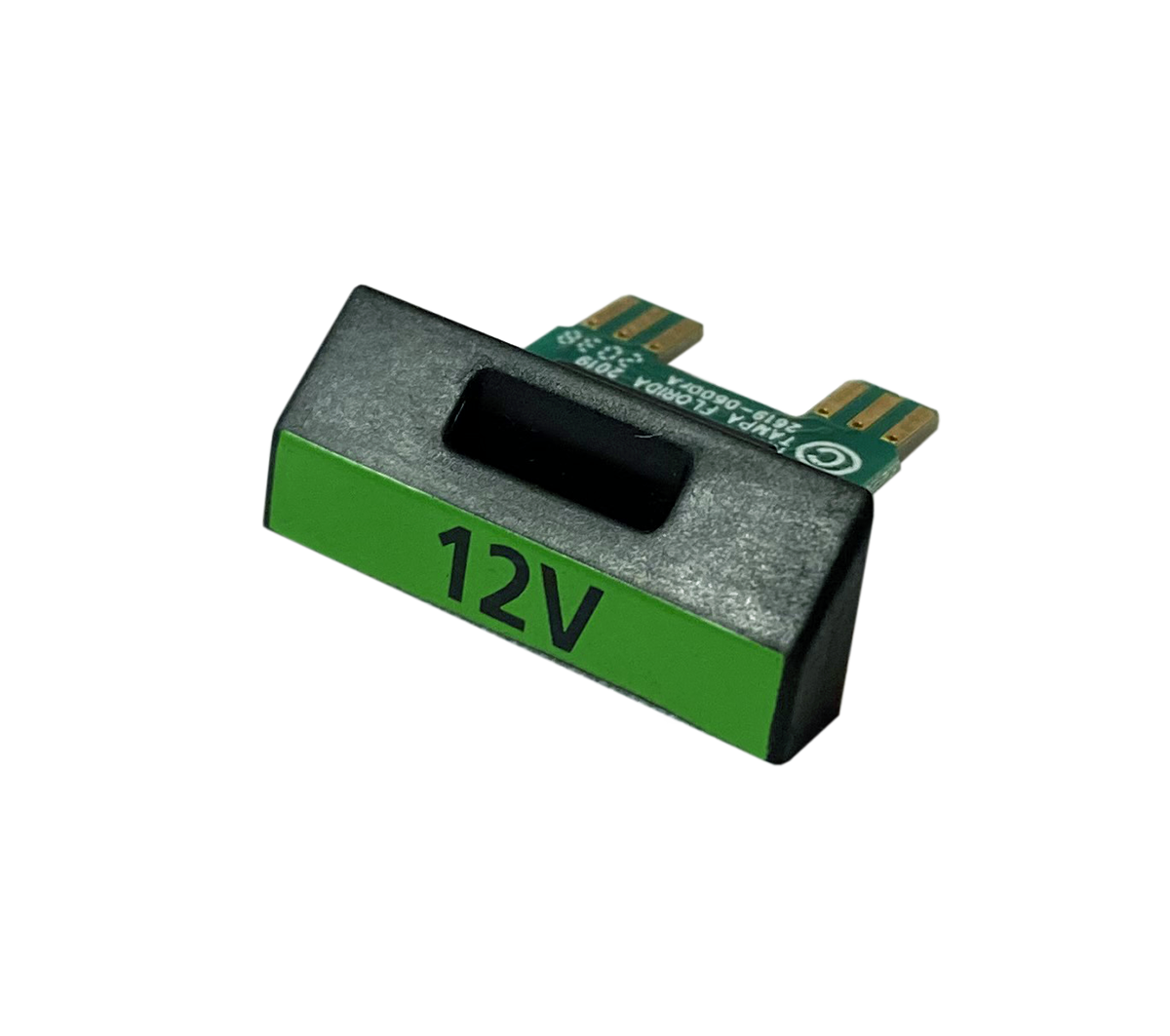

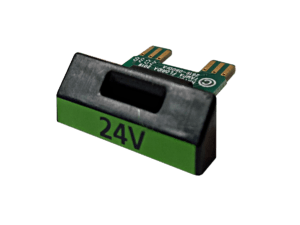

  • Key Programmable Output via V-LOC Keys: 12V*, 24V, 36V & 48V 40W, 60W & 96W Models*
  • No minimum load required
  • UL Class 2 outputs
  • UL8750 Supplement SF Compliant: Isolated 0-10V
  • UL/cUL Class P Listed
  • Field installable
  • Two Case Styles: Flying leads or built-in field wiring compartments with knockouts

* 96W does not support 12 VDC
† For more information on TOUCH Dimming, please see the TOUCH Dimmer specification.
