Ballasts

The Industry Standard for Performance and Reliability

Hatch is a leading manufacturer of HID and Fluorescent Ballasts with a catalog that spans all popular case styles and mounting configurations. Utilizing the highest quality circuitry to extend lamp life and maximize lamp efficiency, Hatch ballasts have been the industry standard for reliability for over three decades.

Electronic HID

Hatch Electronic HID Ballasts have been designed from the ground up to be the most reliable and flexible ballasts in the lighting industry. Available in a wide variety of case sizes and configurations, Hatch HID ballasts are recognized in the lighting industry for their proven dependability in countless applications.

Fluorescent

Hatch Compact and Linear Fluorescent Ballasts currently power millions of fixtures across the world and are widely known for their excellent build quality and reliability. Hatch currently offers fluorescent ballasts in most industry standard case sizes and configurations.





Fluorescent Sign

Hatch Fluorescent Sign Ballasts offer the same quality and dependability found in all Hatch fluorescent ballasts. Engineered with the latest electronic circuitry, these ballasts will fit the needs of the OEM sign builder as well as the lighting maintenance contractor. With starting temperatures down to -20F, the rugged design of these products ensure long years of trouble free service.

ESB-0216-12-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

132, 122W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1 or 2

Ignition

Instant

ESB-0432-14-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

267, 244W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1, 2, 3 or 4

Ignition

Instant

ESB-0848-46-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

410, 370W

UL

UL Listed

Lamp Type

F96T12/HO, F72T8/HO

Lamp Connection

Parallel

Number of Lamps

1 or 2

Ignition

Instant

ESB-1040-14-UV

Fluorescent Sign

Input Voltage

120 - 277VAC

Wattage

352, 330W

UL

UL Listed

Lamp Type

F120T12HO, F96T8HO

Lamp Connection

Parallel

Number of Lamps

1, 2, 3 or 4

Ignition

Instant

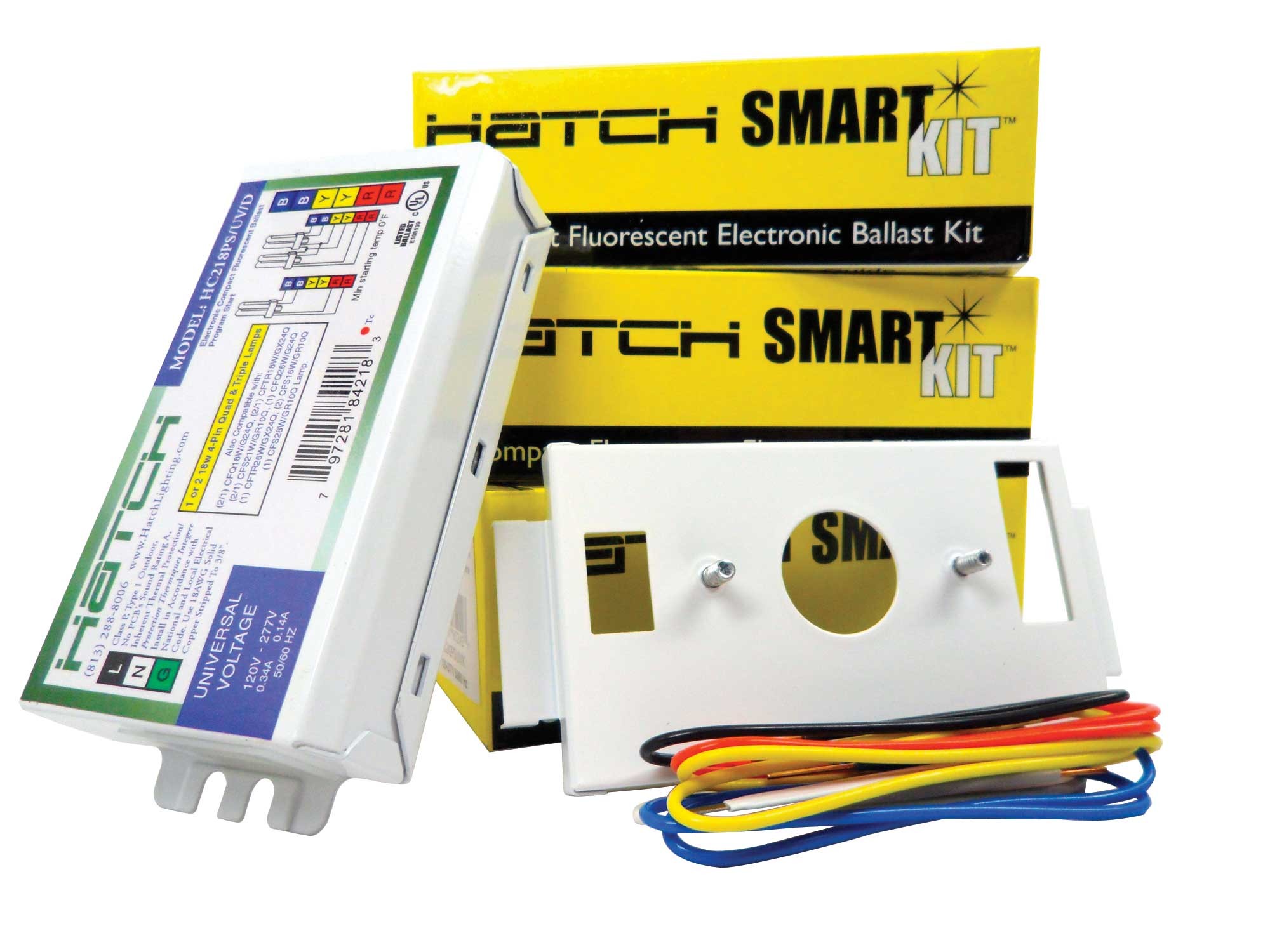

HC213/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

13W CFL

HC218/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

18W CFL

HC226/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

26W CFL

HC226PS/UV/D

Compact Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Lamp Type

CFQ26W/G24q, CFTR26W/GX24q, CFS21W/GR10q, CFTR42W/GX24q, CFTR32W/GX24q, CFTR57W/GX24q, CFQ57W/G24q, CFS38W/GR10q, FT24W/2G11, FT18W/2G11, FT40W/2G11, FT39W/2G11, FT36W/2G11, FC16T9/G10q, FC12T5/2GX13, FC9T5/2GX13

Number of Lamps

1 or 2

Ignition

Programmed

HC242/PS/UV/K

Compact Fluorescent Replacement Kits

Lamp Type

42W CFL

HL232BIS/UV/HE/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed Class P

Ballast Factor

Normal

Lamp Type

F32T8 32W, F32T8 30W, F32T8 28W, F32T8 25W, F17T8 17W, F40T8 40W

Number of Lamps

1 or 2

Ignition

Instant

HL240IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Ballast Factor

Normal

Lamp Type

F40T12 & U, F34T12 & U, F40T12 25W, F30T12

Number of Lamps

2

Ignition

Instant

HL254HO/PS/UV/S

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed

Ballast Factor

High

Lamp Type

F34T12 & U, F40T12 25W, FC12T5/HO 55W, FT55W/2G11, FT50W/2G11, FT36W/2G11, F54T5/HO/ES 49W

Number of Lamps

1 or 2

Ignition

Programmed

HL254HO/PS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

Normal

Ballast Factor

Normal

Lamp Type

F54T5/HO, FC12T5/HO 55W, FT55W/2G11, FT50W/2G11, FT36W/2G11, F54T5/HO/ES 49W

Number of Lamps

1 or 2

Ignition

Programmed

HL259IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

Normal

Ballast Factor

Normal

Lamp Type

F96T8 59W, F96T8/ES 57W, F96T8/ES 51W, F72T8 46W

Number of Lamps

1 or 2

Ignition

Instant

HL275IS/12/W

Linear Fluorescent

Input Voltage

120 - 120VAC

UL

Normal

Ballast Factor

Normal

Lamp Type

F96T12 75W, F96T12/ES 60W, F84T12 70W, F72T12 57W, F64T12 52W, F60T12 50W, F48T12 40W, F48T12/ES 30W

Number of Lamps

1 or 2

Ignition

Instant

HL275IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

Normal

Ballast Factor

Normal

Lamp Type

F96T12 75W, F96T12/ES 60W, F84T12 70W, F72T12 57W, F64T12 52W, F60T12 50W, F60T12 50W, F48T12/ES 30W

Number of Lamps

1 or 2

Ignition

Instant

HL286HO/IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

Normal

Ballast Factor

Low

Lamp Type

F96T8/HO 86W

Number of Lamps

1 or 2

Ignition

Instant

HL296HO/IS/UV/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

Normal

Ballast Factor

Normal

Lamp Type

F96T12/HO 110W, F96T12/HO/ES 95W, F72T12/HO 85W, F60T12/HO 75W, F48T12/HO 60W

Number of Lamps

1 or 2

Ignition

Instant

HL432BIS/UV/HE/W

Linear Fluorescent

Input Voltage

120 - 277VAC

UL

UL Listed Class P

Ballast Factor

Normal

Lamp Type

F32T8 32W, F32T8 32W, F32T8 30W, F32T8 30W, F32T8 28W, F32T8 28W, F32T8 25W, F32T8 25W, F25T8 25W, F25T8 25W, F17T8 17W, F17T8 17W, F40T8 40W

Number of Lamps

3 or 4

Ignition

Instant

MC20-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

20W

UL

UL Listed

Lamp Type

M/C156 CMH

Mounting

Feet

Wire Feed

One Side

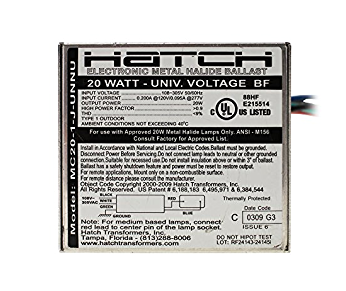

MC20-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

20W

UL

UL Listed

Lamp Type

M/C156 CMH

Mounting

Studs

Wire Feed

Bottom

MC39-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

39W

UL

UL Listed

Lamp Type

M130 CMH

Mounting

Feet

Wire Feed

One Side

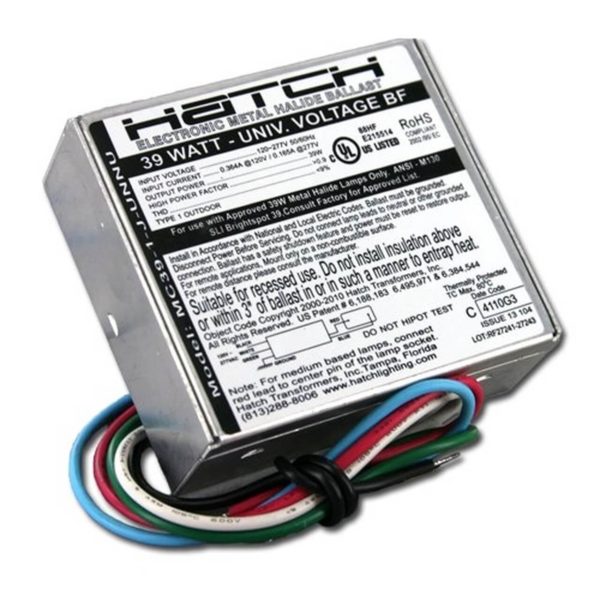

MC39-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

39W

UL

UL Listed

Lamp Type

M130 CMH

Mounting

Studs

Wire Feed

Bottom

MC70-1F-UNNS

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Feet

Wire Feed

Two Sides

MC70-1F-UNNSL

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Track

Wire Feed

One Side

MC70-1F-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Feet

Wire Feed

One Side

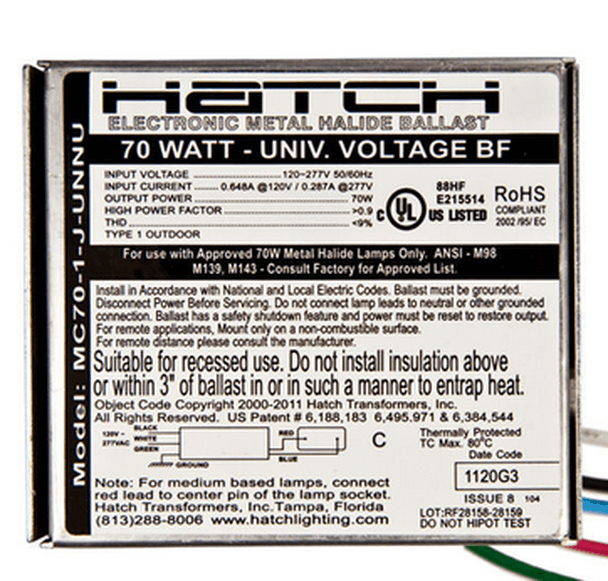

MC70-1J-UNNU

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Studs

Wire Feed

Bottom

MC70-1T-UNNS

Electronic HID

Input Voltage

120 - 277VAC

Wattage

70W

UL

UL Listed

Lamp Type

M/C85, M/C98. M/C139, M/C143 CMH

Mounting

Track

Wire Feed

Two Sides
