Constant Voltage LED Drivers
Flexible and Reliable Drivers for Constant Voltage Applications
Our constant voltage LED drivers were designed with the highest level of flexibility in mind. The extensive product line offers a wide range of output voltages, wattages, case sizes and special features. Many are available in knockout-style housings with separate wiring compartments for input and output leads. Whether you are designing for outdoor signage, indoor track fixtures or high-end architectural applications, Hatch has a power supply that will support your needs.
V-LOC Key Programmable Constant Voltage LED Drivers
V-LOC Key Programmable Constant Voltage LED Drivers provide the flexibility to select the output voltage (12V*, 24V, 36V & 48V) using simple, insertable keys and incorporate smooth 0-10V dimming down to 1%. Available in 40W, 60W & 96W* models. (*96W does not support 12 VDC.)

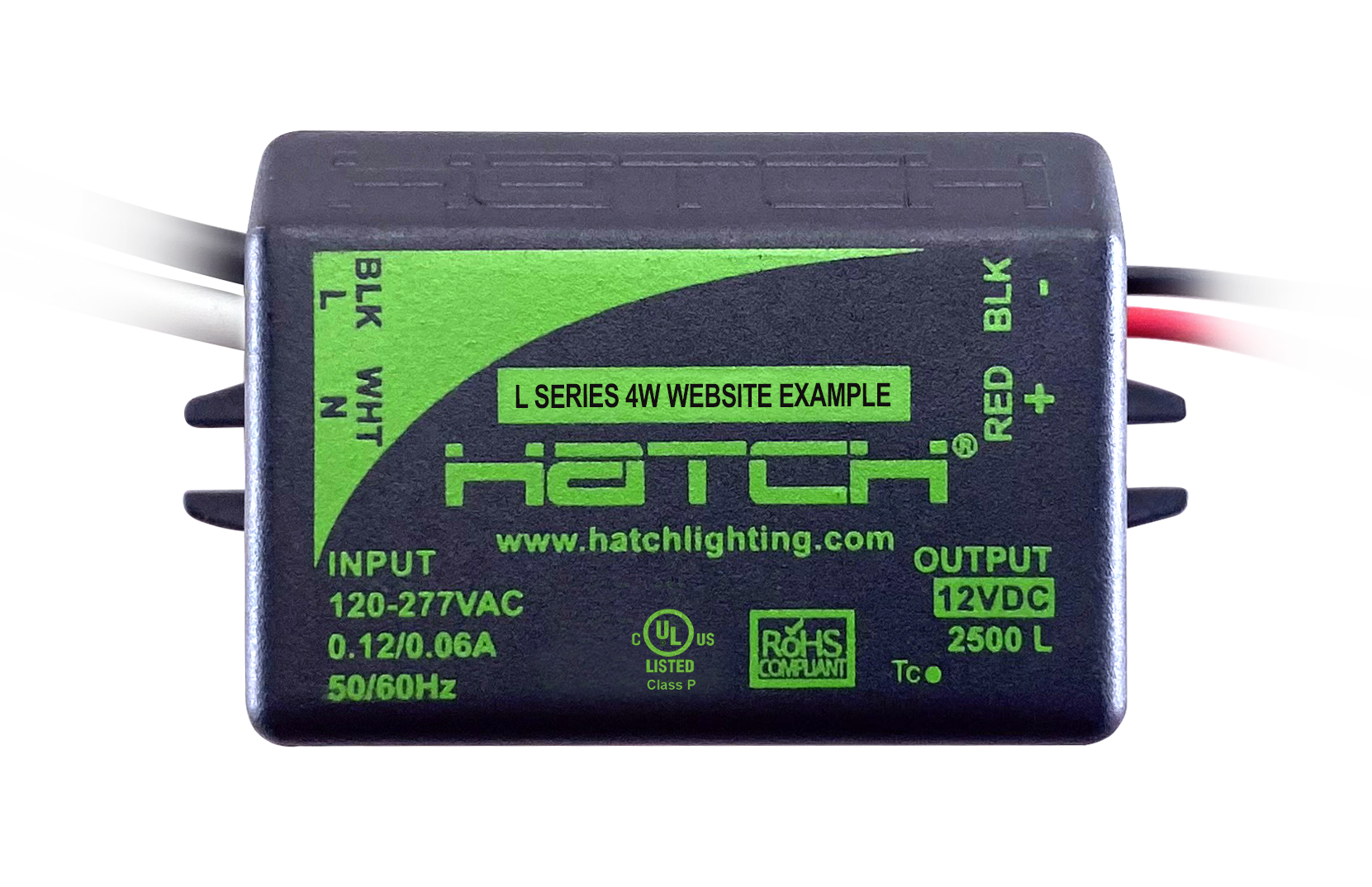

L-Series Constant Voltage LED Drivers
The L-Series line of constant voltage LED drivers offer a variety of wattages (from 4W to 200W), case sizes/dimensions and output currents.
LV004W-12-UNV
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
4W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV004W-24-UNV
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
4W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV10-12N-120-A
LED - Constant Voltage
Input Voltage
120 - 120VAC
Output Voltage
12VDC
Wattage
10W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV10-24N-120-A
LED - Constant Voltage
Input Voltage
120 - 120VAC
Output Voltage
24VDC
Wattage
10W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV100-12N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
100W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV100-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
100W
Dimming
No
UL
UL Recognized
Key Programmable
no

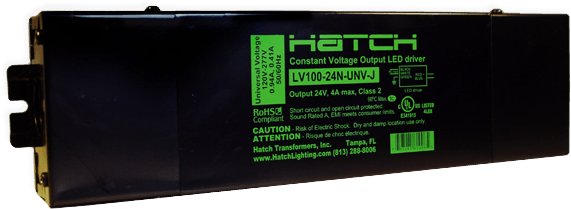

LV100-24N-UNV-J
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
100W
Dimming
No
UL
UL Listed
Key Programmable
no
LV12-12N-UNV-Y
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
12W
Dimming
No
UL
UL Recognized
Key Programmable
no

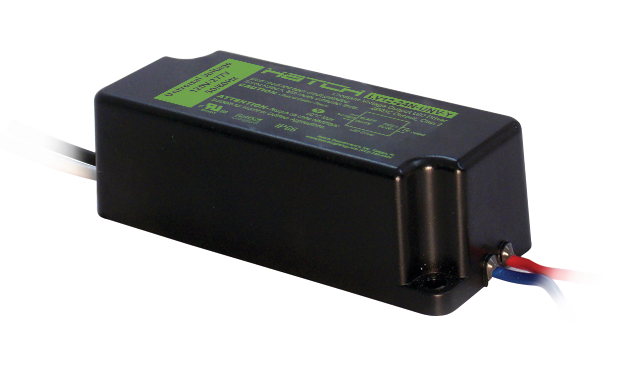

LV12-24N-UNV-Y
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
12W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV24-12N-UNV-D
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
24W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV24-24N-UNV-D
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
24W
Dimming
No
UL
UL Recognized
Key Programmable
no

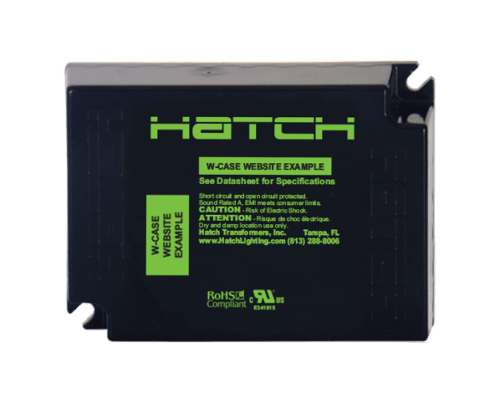

LV40-24N-UNV-W
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
40W
Dimming
No
UL
UL Listed Class P
Key Programmable
no
LV60-12N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
60W
Dimming
No
UL
UL Listed
Key Programmable
no
LV60-12T-UNV-RR
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12VDC
Wattage
60W
Dimming
Yes
UL
UL Recognized
Key Programmable
no
LV60-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
60W
Dimming
No
UL
UL Listed
Key Programmable
no

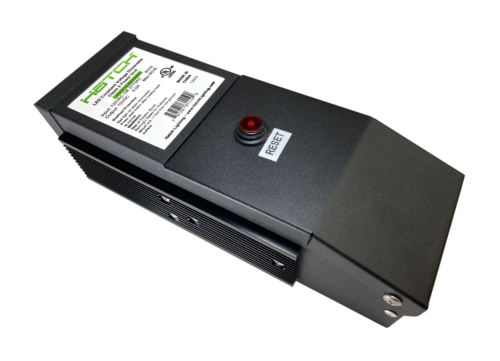

LV60-24T-1227-KK
LED - Constant Voltage
Input Voltage
120 or 277VAC
Output Voltage
24VDC
Wattage
60W
Dimming
MLV Triac
UL
UL Listed
Key Programmable
no
LV60-24T-UNV-RR
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
60W
Dimming
Yes
UL
UL Recognized
Key Programmable
no
LV80-24N-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
80W
Dimming
No
UL
UL Recognized
Key Programmable
no
LV96-24T-UNV-IT
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24VDC
Wattage
96W
Dimming
Yes
UL
UL Recognized
Key Programmable
no
X12V
LED - Constant Voltage
Description
V-LOC Key Assembly, 12V
Key Programmable
Yes
X24V
LED - Constant Voltage
Description
V-LOC Key Assembly, 24V
Key Programmable
Yes
X36V
LED - Constant Voltage
Description
V-LOC Key Assembly, 36V
Key Programmable
Yes
X48V
LED - Constant Voltage
Description
V-LOC Key Assembly, 48V
Key Programmable
Yes
XKV40-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
40W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XKV60-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
60W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XKV96-2448Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24 - 48VDC
Wattage
96W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XWV40-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
40W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes

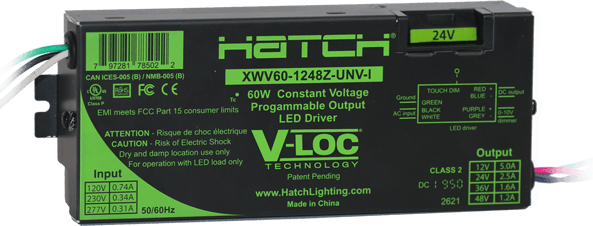

XWV60-1248Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
12 - 48VDC
Wattage
60W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
XWV96-2448Z-UNV-I
LED - Constant Voltage
Input Voltage
120 - 277VAC
Output Voltage
24 - 48VDC
Wattage
96W
Dimming
0 - 10v, TOUCH
UL
UL Listed Class P
Key Programmable
Yes
