LED Power Supply Solutions for Your Lighting Designs



Powering Lighting Applications for 36 Years

At Hatch Lighting, product engineering and electronic design have remained the cornerstones of our business. For 36 years we have specialized in the design and manufacture of innovative electronic power supplies for lighting applications. We offer a full range of LED Drivers, Emergency Lighting Products and Surge Protection Devices that will bring your designs to light – and delight your customers.



LED Drivers

We aim to provide our LED customers with maximum flexibility to craft fixtures that are both elegant in design and reliable in function. Our full selection of LED drivers include:

Constant Current LED Drivers

  • L-Series Constant Current LED Drivers offer a variety of wattages (from 4W to 200W), case sizes/dimensions and output currents.

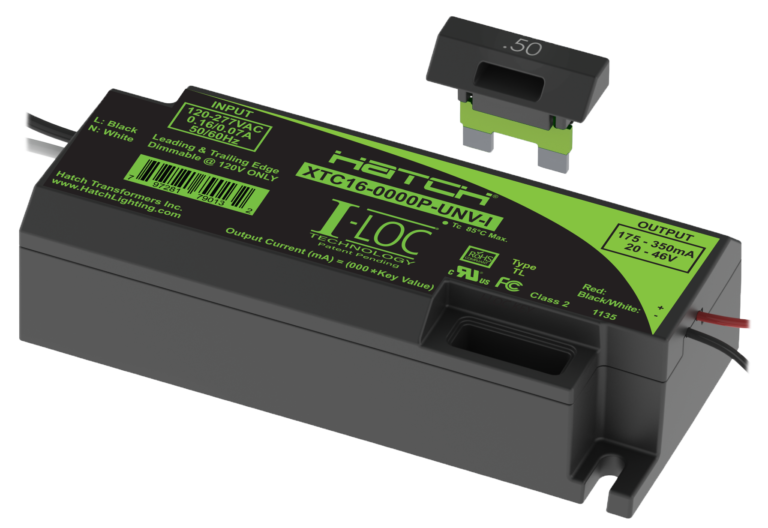

  • I-LOC Key Programmable Constant Current LED Drivers provide the flexibility to select the output current using an easy, insertable key. A single I-LOC Driver has 21 different key setting and covers 50% power up to maximum output.

Constant Voltage LED Drivers

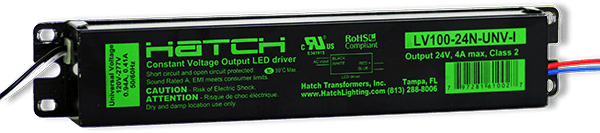

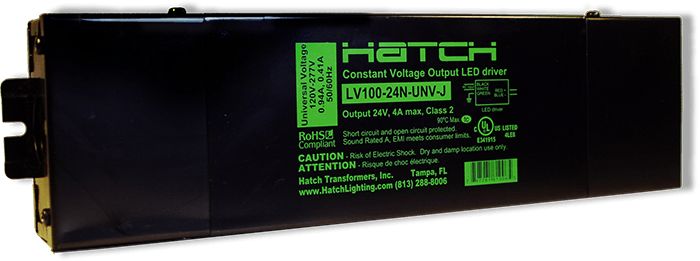

  • L-Series Constant Voltage LED Drivers offer a variety of wattages (from 4W to 192W), case sizes/dimensions and output voltage options.

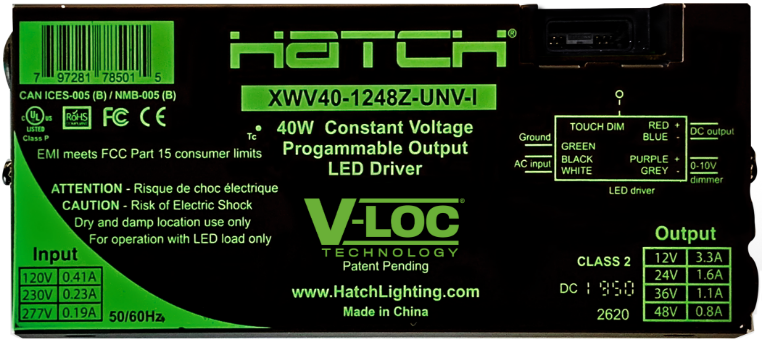

  • V-LOC Key Programmable Constant Voltage LED Drivers provide the flexibility to select the output voltage (12V*, 24V, 36V & 48V) using simple, insertable keys. Available in 40W, 60W & 96W* models. (*96W does not support 12 VDC.)

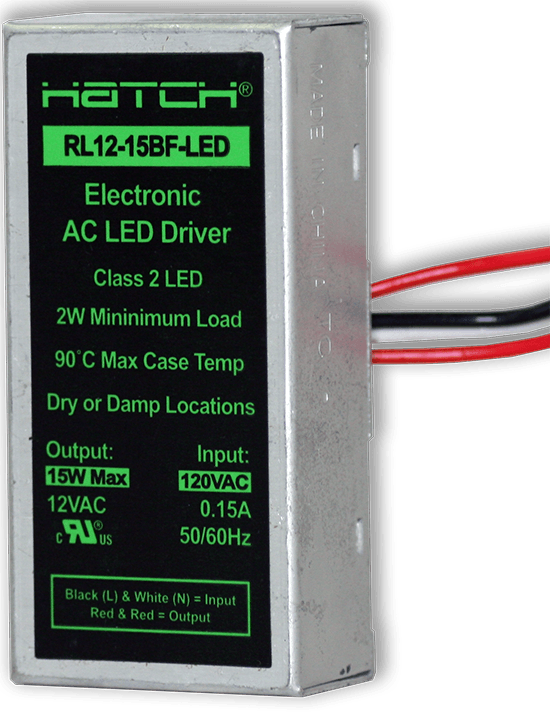

  • AC LED Drivers are primarily used with LED MR16 lamps to convert halogen fixtures to LED with minimal hassle and cost. The RL-LED, adapts to the evolving technology in MR16 LED lamps.

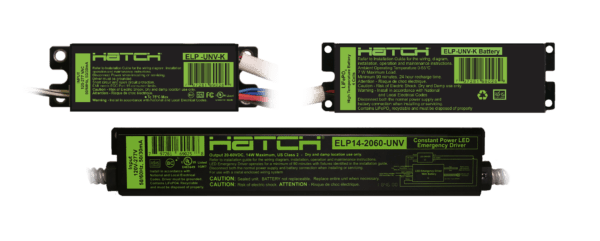

Emergency Lighting Solutions

Our Emergency LED Drivers feature a constant power design architecture, are UL Listed for factory or field installation and allow an LED lighting fixture to be used in normal and emergency operation modes. All models will operate an existing fixture for a minimum of 90 minutes during a power failure and include a test switch and charge indicator.

Typical Product Features

  • Long-life high temperature environmentally-friendly LiFePO4 battery used in most models
  • Class 2 output
  • Integrated snap-in flex conduit on single-piece models
  • Includes test switch with integrated charge indicator
  • For use with switched or unswitched fixtures
  • Meets or exceeds all national electrical code and life safety code emergency lighting requirements
  • Suitable for dry or damp locations
  • UL Listed for field or factory installation with fixtures that meet the requirements in the installation guide
  • Includes installation guide and luminaire modification label

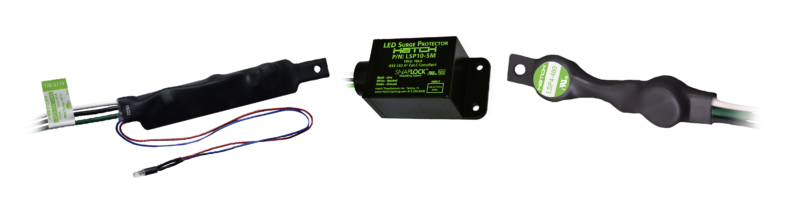

Surge Protection Devices

Our Surge Protection Devices are designed to meet the needs of the lighting industry. All designs are parallel-type devices and are UL Recognized to UL1449. The products offer several protection levels and form factors to provide flexibility to incorporate surge protection in fixtures protecting LED drivers, ballasts, sensors, controls and IoT modules. All Hatch surge protection devices are UL approved for factory installation and field replacement.
