Programmable
Constant Current
LED Drivers

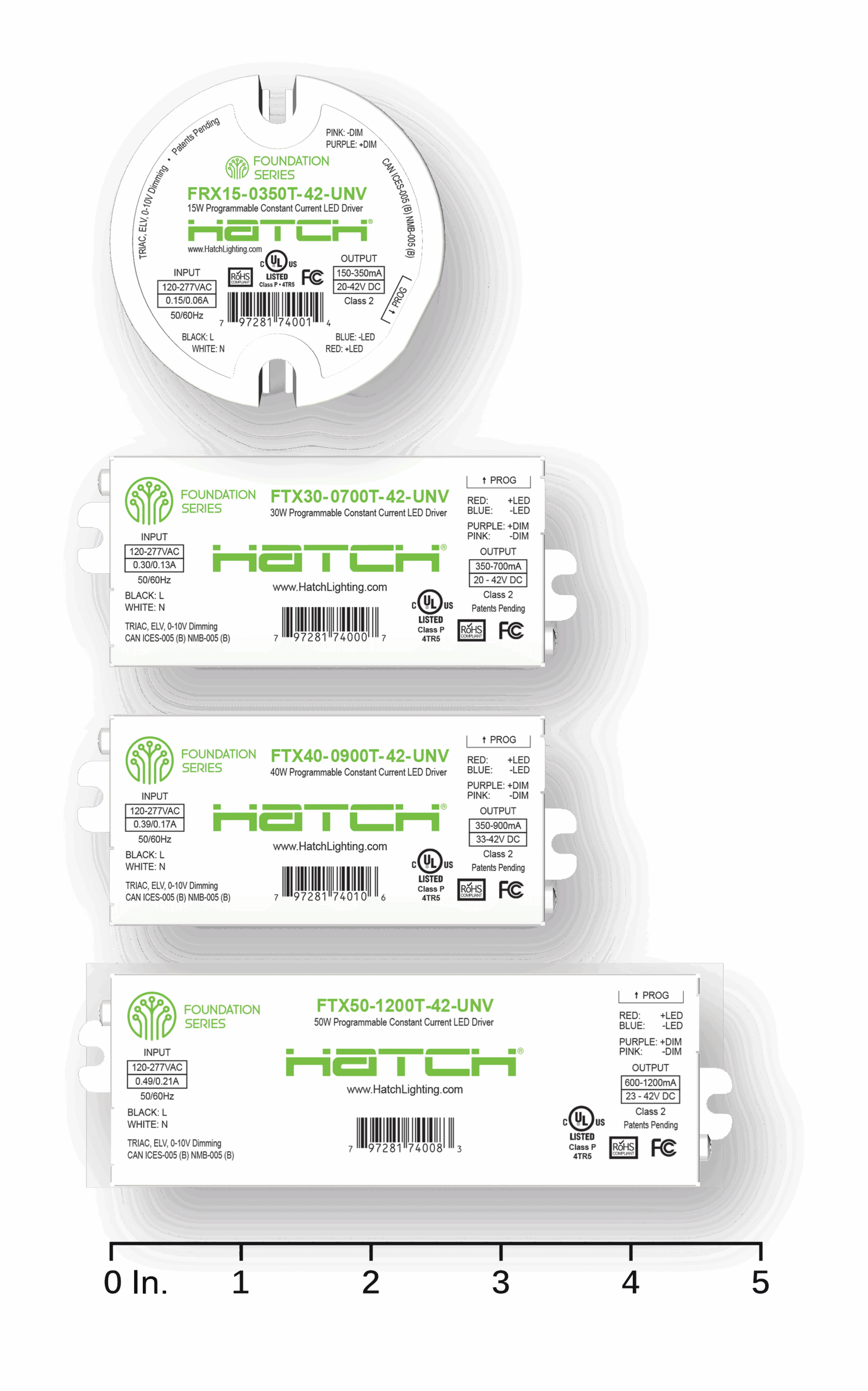

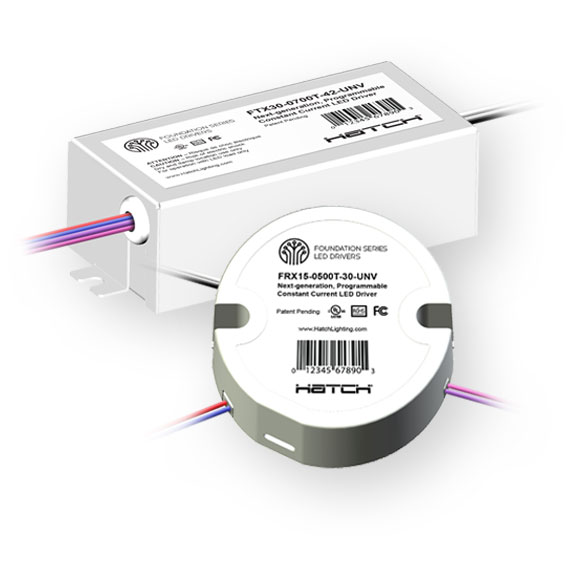

The Foundation Series is a new family of programmable, UL Listed Class-P LED Drivers designed for high performance lighting systems in the North American marketplace.
Key features include:
- Cloud-Based Programming via Windows or Android Devices
- High Power Density
- Excellent Thermal Management
- Tri-Dim Capability (1% for Triac, ELV & 0-10V)
- Dim-to-off Capability
Programming
Unique cloud-based programming offers the following advantages:
- Cloud-based LED driver programming via the Foundation Portal accessed via the Google Chrome Browser on a Windows or Android device. No software downloads or updates required. The software is always up-to date with continuously added features in the Portal.
- The Foundation Portal provides a simple user experience to enable quick settings for output current and dimming parameters. Programming profiles, user profiles and session data are all stored in your secure cloud account.
- A Foundation Link USB Connector (sold separately) is used to interface between the PC or Android programming device and the LED Driver. The Driver does not require external power for programming.
- Foundation Portal Access: foundation.hatchlighting.com
Products

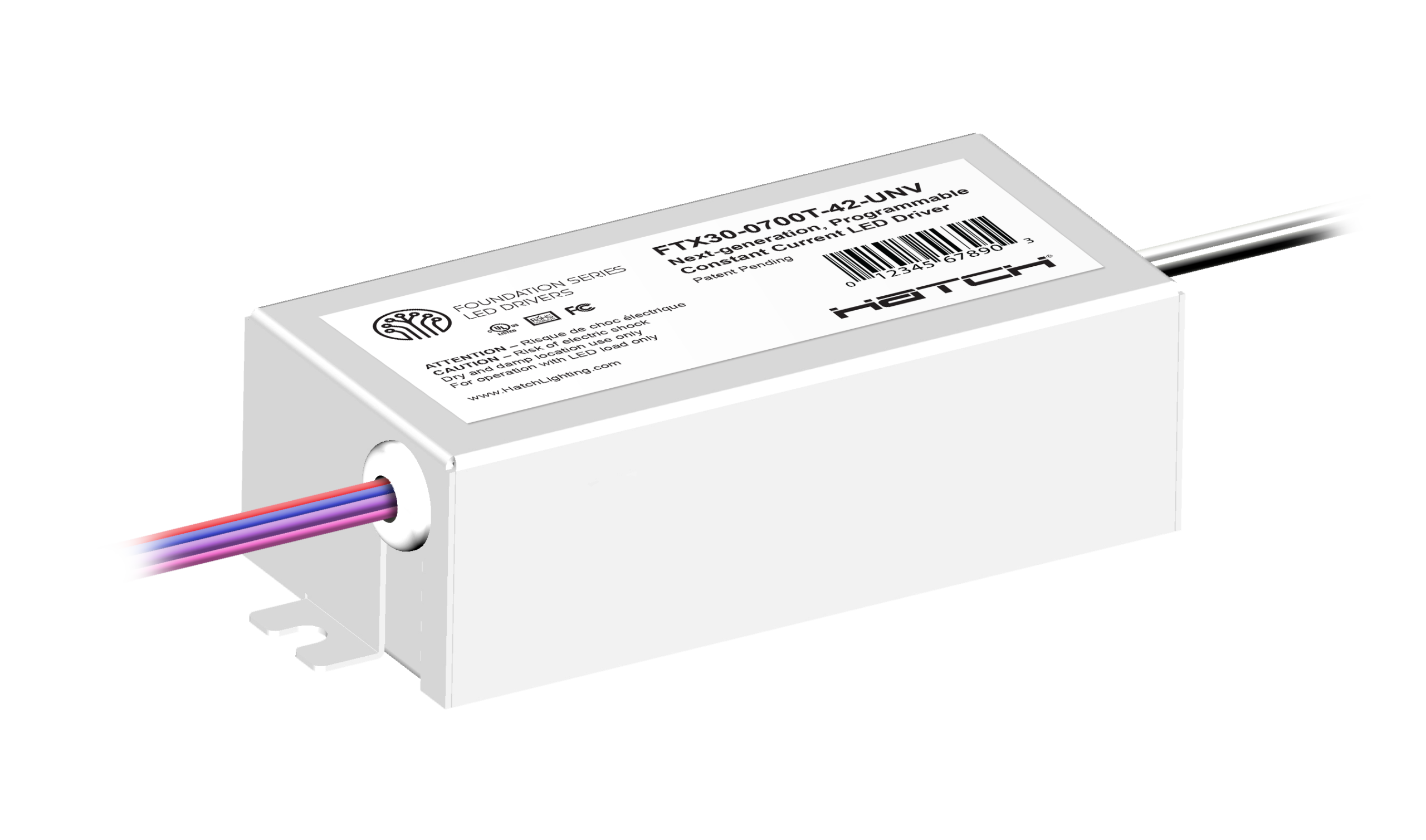

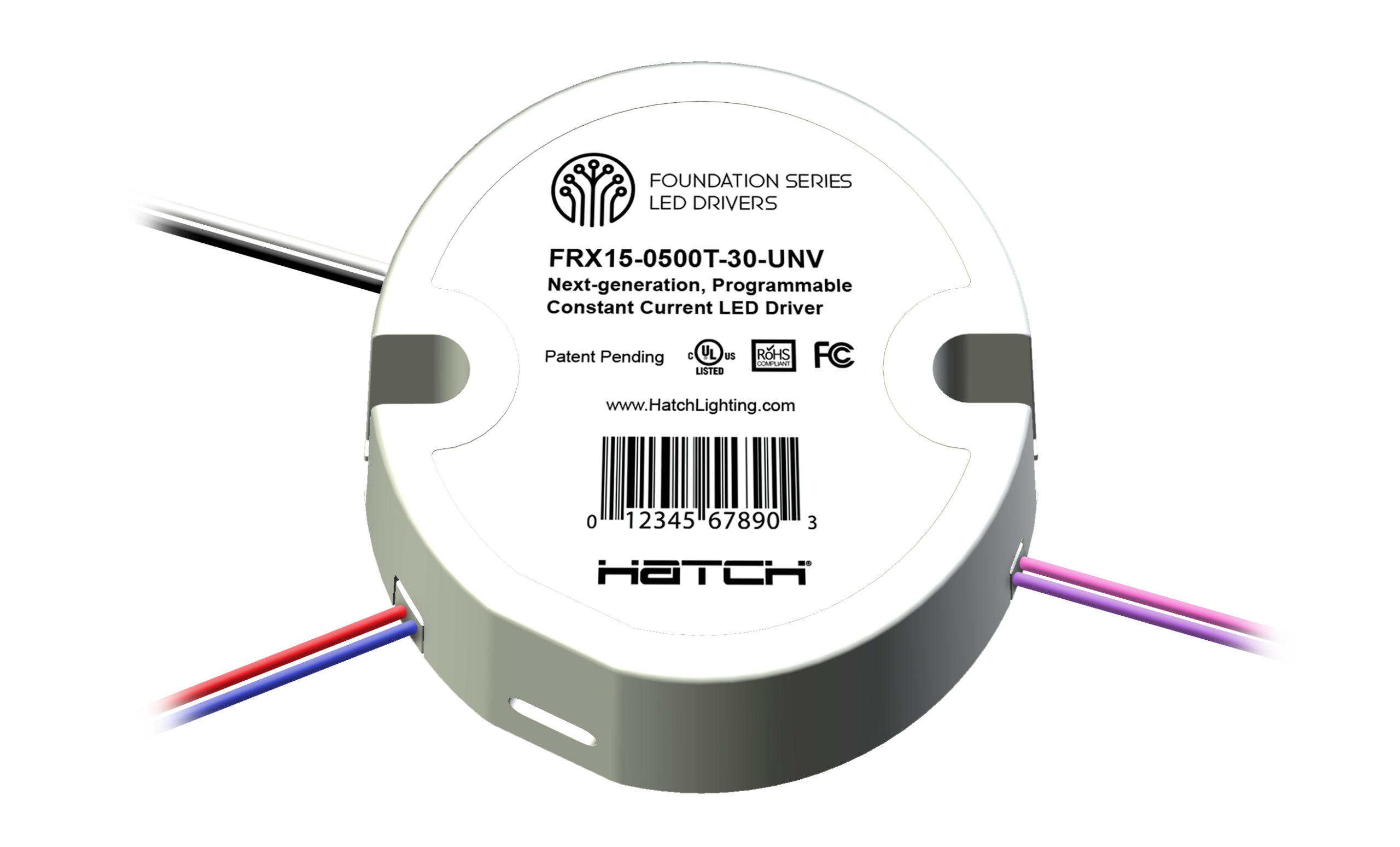

LED - Foundation Series
Input Voltage
120 -
277 VAC
Wattage
15 W
Output Voltage
20 -
42 VDC
Dimming
Yes
Current Range
150 -
350 mA
UL
Listed Class P
LED - Foundation Series
Input Voltage
120 -
277 VAC
Wattage
15 W
Output Voltage
15 -
30 VDC
Dimming
Yes
Current Range
200 -
500 mA
UL
Listed Class P
LED - Foundation Series
Input Voltage
120 -
277 VAC
Wattage
15 W
Output Voltage
20 -
42 VDC
Dimming
Yes
Current Range
150 -
350 mA
UL
Listed Class P
LED - Foundation Series
Input Voltage
120 -
277 VAC
Wattage
15 W
Output Voltage
15 -
30 VDC
Dimming
Yes
Current Range
200 -
500 mA
UL
Listed Class P
LED - Foundation Series
Input Voltage
120 -
277 VAC
Wattage
15 W
Output Voltage
20 -
42 VDC
Dimming
Yes
Current Range
150 -
350 mA
UL
Listed Class P
