Hatch Emergency Drivers

Hatch Emergency Drivers

Keeping the lights on when the power goes out

Search by Input Voltage, Current Range, Output Voltage and Wattage to find the perfect Hatch Emergency Driver for your project.

Click here for all documentation associated with the ELP line including App Notes and Installation Guides and Press Releses

Need to have a conversation? Click here to find a distributor, agent, or regional sales person near you. Or, click on the chat feature at the bottom right corner of this page M-F 8:00- 5:00 EST

Find additional wiring diagrams for the various ELP Emergency Drivers offered by Hatch.

Energy Efficient Single and Dual Piece Designs

Hatch Emergency Drivers allow an LED lighting fixture to be used for normal and emergency operation, and will operate an existing fixture for a minimum of 90 minutes during a power failure.  All LED emergency drivers in the Hatch line include a test switch with charge indicator and are UL Listed for field or factory installation.
Additionally, Hatch carries a line of LED Modules designed to provide an alternate light source for fixtures with non-LED lamps.

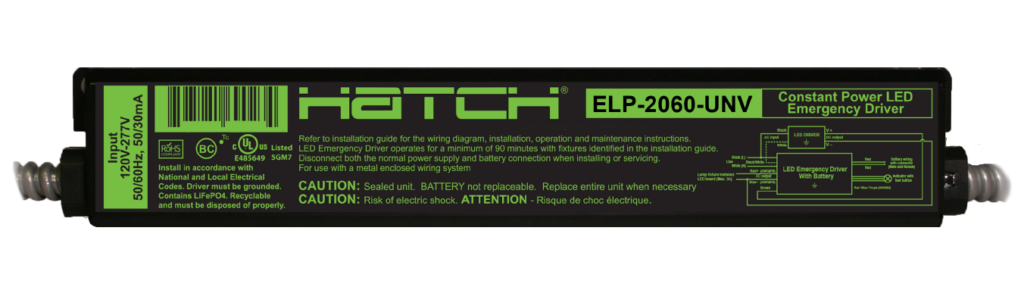

INTEGRATED EMERGENCY DRIVERS

Driver Measurements – 13.30″ X 2.37″X 1.50″

Title 20

ELP07-2060-UNV

Certified in the California Appliance Database

ELP07-2060-UNV

120-277 VAC
20-60 Class 2
Energy Efficient LiFePo4 Battery
Integrated design for convenience
Click Here
Title 20

ELP10-2060-UNV

Certified in the California Appliance Database

ELP10-2060-UNV

120-277 VAC
20-60 Class 2
Energy Efficient LiFePo4 Battery
Integrated design for convenience
Click Here
Title 20

ELP14-2060-UNV

Certified in the California Appliance Database

ELP14-2060-UNV

120-277 VAC
20-60 Class 2
Energy Efficient LiFePo4 Battery
Integrated design for convenience
Click Here

Driver Measurements – 12.50″ X 2.37″X 2.375″

ELP20-2060-UNV

This emergency driver features advanced diagnostic capabilities, and advanced charging system,and two-color test switch to display flashing fault codes to let users know the status of the system and to report diagnostic information.

ELP05-UNV-K

120-277 VAC
12-39 VDC Class 2
Maintenance Free NiCad Battery
Two-piece design for flexibility
Click Here

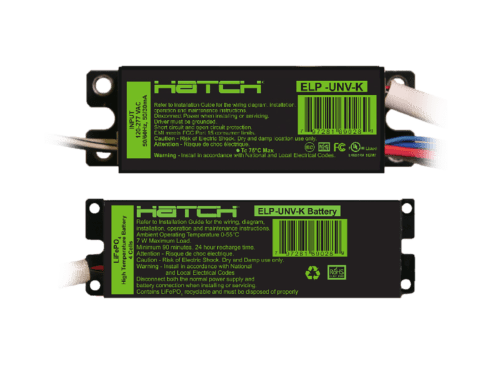

NON-INTEGRATED EMERGENCY DRIVERS

The high-efficiency performance of the Hatch 7W, 10W and 14W Emergency Drivers with LiFePo4 battery technology allow an LED fixture to be used for normal and emergency operation.  The dual piece design allows for maximum installation flexibility.

Non-integrated Emergency driver

Driver Measurements – 6.48″ X 1.86″X 1.10″

Battery Measurements – 6.48″ X 2.37″ X 1.22″

Title 20

ELP07-UNV-K

Certified in the California Appliance Database

ELP07-UNV-K

120-277 VAC
20-60 Class 2
Energy Efficient LiFePo4 Battery
Two-piece design for flexibility
Click Here
Title 20

ELP10-UNV-K

Certified in the California Appliance Database

ELP10-UNV-K

120-277 VAC
20-60 Class 2
Energy Efficient LiFePo4 Battery
Two-piece design for flexibility
Click Here
Title 20

ELP14-UNV-K

Certified in the California Appliance Database

ELP14-UNV-K

120-277 VAC
20- 60Class 2
Energy Efficient LiFePo4 Battery
Two-piece design for flexibility
Click Here

UL Listed for field or factory installation, the 5W and 12W Hatch Emergency Drivers allow an LED fixture to be used for normal and emergency operation.  The dual piece design allows for maximum installation flexibility.

Non-integrated Emergency driver

Driver Measurements – 6.26″ X 1.37″X 1.00″

Battery Measurements – 8.07″ X 1.97″ X 0.98″

ELP05-UNV-K

ELP05-UNV-K

120-277 VAC
12-39 VDC Class 2
Maintanence Free NiCad Battery
Two-piece design for flexibility
Click Here

ELP12-UNV-K

ELP12-UNV-K

120-277 VAC
12-39 VDC Class 2
Maintanence Free NiCad Battery
Two-piece design for flexibility
Click Here

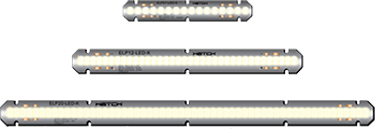

OPTIONAL LED MODULES

Hatch LED modules provide a matched LED light source for Hatch Emergency Drivers. They are available in 3 different versions to cover the entire family of Hatch Emergency Drivers and are tuned to provide 130 lumens/watt of light for emergency egress illumination. When paired with Hatch Emergency Drivers they are the perfect light source for Retrofit and other non-LED applications.

Available in 3 Versions

ELP07-UNV-K: FOR USE WITH ELP05 AND ELP07 DRIVERS

ELP12-LED-K:  FOR USE WITH ELP10 AND ELP12 DRIVERS

ELP 20-LED-K: FOR USE WITH ELP14 AND ELP20 DRIVERS
